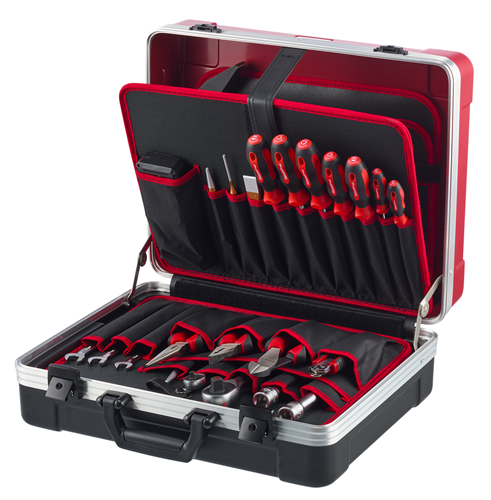

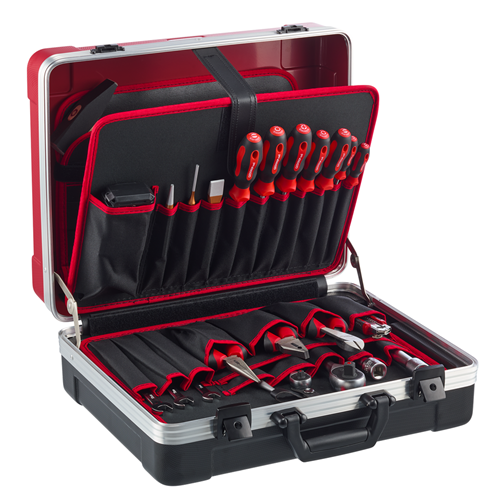

Universal set ALL-IN, 108 pcs
R21000108
/ Code no. 3301642
Universal set ALL-IN, 108 pcs
R21000108
/ Code no. 3301642
Price on request
Product line
EAN
4060833016421
Product description
- Socket wrench tools:
- Coupler in acc. with DIN 3120, ISO 1174, with ball locking device
- Square drive as per DIN 3120, ISO 1174, with ball retention groove
- 2C reversible ratchet 1/4" + 1/2": lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-meterial handle, hands-friendliy transfer of force, for sockets
- Socket, hex, metric, short, as per DIN 3124, ISO 2725
- Socket wrench extension
- Universal joint, screwed joint, design according to DIN 3123
- For hand-operated applications
- Chrome-vanadium steel, matt satin chrome-plated
- Socket strip for fitting with insert holders for 1/2" sockets, aluminium
- Ratchet wrench, metric: Following DIN 3113, ISO 3318, straight form, jaw position 15°, surface satin matt chrome plated, chrome vanadium steel
- Engineers’ hammer: Forged hammer head of tempered steel, inductively hardened striking surfaces, to DIN 1041, ash handle, paint-coated shaft end, ring wedge
- Combination pliers: To DIN ISO 5746, gripping zones for flat and round material, inductively hardened cutting edges, 2-component-handle, chrome-vanadium steel
- Power side cutter: To DIN ISO 5749, high degree of cutting performance, inductively hardened, long cutting edges, 2-component-handle, chrome-vanadium steel
- Bent nose telephone pliers, straight: To DIN ISO 5745, straight gripping surfaces, lengthways-serrated, inductively hardened cutting edges, 2-component-handle, chrome-vanadium steel
- Tape measure: ABS dual-material housing, clip, nylon-coated tape, mm-graduation, with tape rewind and lock, magnetic stop, Accuracy Class II
- 2C screwdriver: Slot and cross-slotted PH, to DIN, high-grade chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, 2-component-handle, 5-edge grip head, elongated hole in handle
- Hexagon socket key: To DIN ISO 2936, hardened throughout, chrome-vanadium steel, phosphated, in holder
- Flat cold chisel, flat oval: To DIN 6453, cutting edge and head ground, impact end tempered, chrome-vanadium steel
- Water pump pliers: To DIN 8976 Form C, lengthways-serrated gripping surfaces, box joint, 7 settings, chrome vanadium steel, powder-coated
- Hexagonal punch: To DIN 6458, impact end annealed, chrome-vanadium steel
- Centre punch, hexagonal: To DIN 7250, impact end annealed, chrome-vanadium steel
- Pin punch, octagonal: To DIN 6450, impact end annealed, chrome-vanadium steel
- Utility knife: Blade 18 mm, synthetic housing, metal blade guide, one-handed operation, 5 spare blades (100mm long, 0.4mm thick), with sharpener
- Bit box: Drive adaptor with magnetic bit locking, hexagon drive to DIN 3126 ISO 1173 - C 6.3, machine operated, phosphated, plastic box
- Bit screwdriver: 2-component-handle, hex recess drive to DIN 3126 - D 6.3 (1/4") for bits, magnet, elongated hole in the handle, chrome-vanadium steel
-
Dimensions and weights
- Weight [kg]: 8,6 kg
-
Scope of delivery
- Parts list (Text): 2C reversible ratchet 1/2" 250 mm Extension 1/2" 125 250 mm Cardan joint 1/2" 66 mm 1/2" hexagon socket wrench insert 8 10 11 12 13 14 15 16 17 18 19 22 24 27 30 32 mm 2C reversible ratchet 1/4" 150 mm Extension 1/4" 100 mm Socket wrench insert 1/4" hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 14 mm Bit-Box, 32 pcs. Bit-Screwdriver 210 mm Cardan joint 1/4" 33 mm 2 x 8" plug-in strip Insert holder 1/4" + 1/2" for plug-in strip Ring ratchet open-end wrench set 8 9 10 11 12 13 14 15 17 19 mm Screwdriver slot 3 4 5,5 6,5 mm Screwdriver cross-head PH 1 2 Offset screwdriver set, 9 pcs. 1.5 2 2.5 3 4 5 6 8 10 mm Combination pliers 180 mm power side cutter 200 mm Flat nose pliers, straight 200 mm Water pump pliers 10" 250 mm Engineer's hammer 500 g Flat chisel 150 mm center punch 4 mm | 120 mm Pin punch 4 mm | 120 mm Drift punch 4 mm | 150 mm Cutter knife with pencil sharpener 175 mm Tape measure 5 m
- Storage: Loose
- Contents (Qty of pieces): 108
