Shaft Seal Installation Tool, Ø 175mm
KL-1025-175 A
/ Code no. 3282708
Shaft Seal Installation Tool, Ø 175mm
KL-1025-175 A
/ Code no. 3282708
Price on request
Product line
EAN
4046459173786
Product description
- The shaft seal presser KL-1025-175 A is required for a professional assembly of shafts seals on Mercedes ACTROS and ATEGO rear axles.
- Note:
- • The rings KL-1025-1752 A and KL-1025-1753 A are required for the rear axle series 746.21 and 148.59 with double sealing.
- • The rings KL-1025-1754 and KL-1025-1755 are required for the AP axles.
-
Dimensions and weights
- Total width [mm]: 195 mm
- Total length [mm]: 233 mm
- Weight [kg]: 8,6 kg
-
Scope of delivery

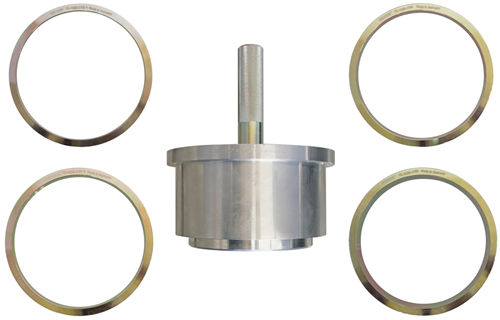

- Parts list (Text): 1x KL-1025-1751 - Shaft seal presser 175 mm dia. 1x KL-1025-1752 A - Ring 7.5 mm 1x KL-1025-1753 A - Ring 17.5 mm 1x KL-1025-1754 - Ring 20 mm 1x KL-1025-1755 - Ring 36 mm
- Contents (Qty of pieces): 5
-
Technical characteristics
- Diameter 2 [mm]: 175 mm
- Suitability: MAN Mercedes
