Injector repair set for gasoline direct injectors
KL-0187-101
/ Code no. 3283828
Injector repair set for gasoline direct injectors
KL-0187-101
/ Code no. 3283828
Price on request
Product line
EAN
4046459173984
Product description
- For damage-free assembly of combustion chamber sealing rings (Teflon sealing rings), and O-rings (fuel side) on direct injection petrol injectors.
- Before reinstalling a used injector, replace the sealing rings as specified by the manufacturer.

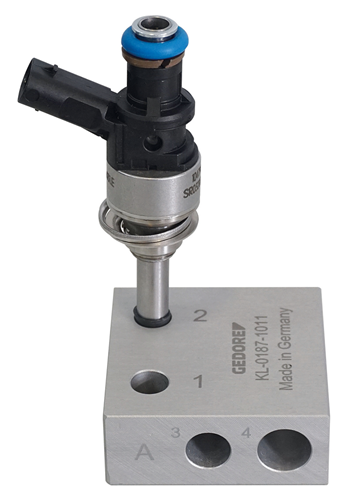

- The new sealing rings are simply pushed on the injector via the assembly cone with the aid of the calibration tool.
- The combustion chamber sealing ring is additionally narrowed (calibrated) in 2-steps at the sealing seat. A new combustion chamber gasket that has not been narrowed during installation is very likely to be damaged when the injector is reinstalled!
-
Scope of delivery

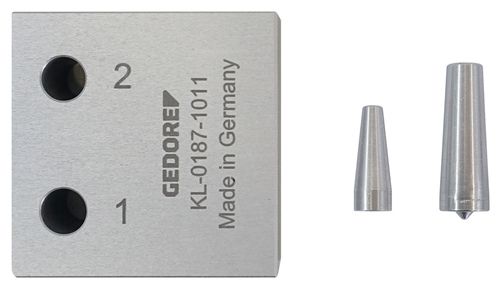

- Parts list (Text): 1x KL-0187-1011 - Calibration tool 1x KL-0187-1012 - Mounting cone 1x KL-0187-1013 - Mounting cone
- Contents (Qty of pieces): 3
-
Technical characteristics
- Suitability: universal Audi Ford Hyundai Mercedes Nissan Opel Seat Skoda VW
- for injectors from: Bosch Continental Denso Magnet-Marelli Siemens/VDO
- for motor type: Petrol
