Injector extractor set, in foam insert
KL-0186-91 EA
/ Code no. 3283992
Injector extractor set, in foam insert
KL-0186-91 EA
/ Code no. 3283992
Price on request
Product line
EAN
4046459174097
Product description
- For quick and professional extraction of tight-fitting injectors.
- Required, for example, when replacing the injectors or removing the valve cover.

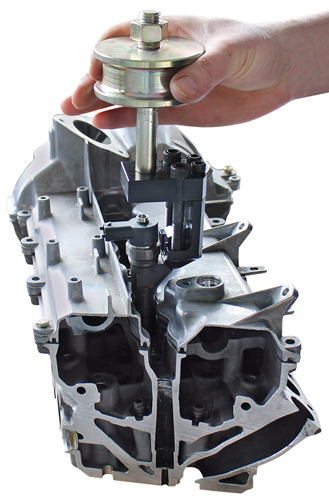

- It is not necessary to open the injector for this purpose, as the injector extractor is fastened over the fuel connection by means of the special screws included in the set.
- The special design of the adapters and the joint piece included in the scope of delivery ensure damage-free and straight-line power transmission to the injector.
-
Dimensions and weights
- Total width [mm]: 159 mm
- Total height [mm]: 53 mm
- Total length [mm]: 243 mm
- Weight [kg]: 2,6 kg
-
Scope of delivery
- Parts list (Text): 1x KL-0186-9000 A - Head plate with cylinder screws 1x KL-0186-9001 A - Injector extractor M12x1 / 45° 1x KL-0186-9201 A - Injector extractor M12x1,5 / 30° 1x KL-0186-950 - Pull joint M18 1x KL-0186-9090-2 A - Foam insert
- Storage: Foam insert
- Contents (Qty of pieces): 15
-
Technical characteristics
- Drive type: manuell
- Suitability: universal Audi BMW Mercedes PSA Seat Skoda VW
- for external thread: M12x1,5
- for injectors from: Bosch Continental Denso Siemens/VDO
- for internal thread: M12x1
- for motor type: Diesel
- Motorcodes: VW-Audi: CFHA, CFJA, CFFB, CAYC. BMW: M47, M57. Mercedes: OM611, OM612, OM613, OM646, OM647, OM648. PSA: DW10.
- Angle/tilt angle: 30° / 45°
