Injector Nozzle Puller Set Universal
KL-0186-14 KB
/ Code no. 3420124
Injector Nozzle Puller Set Universal
KL-0186-14 KB
/ Code no. 3420124
Price on request
Product line
EAN
4046459181088
Product description

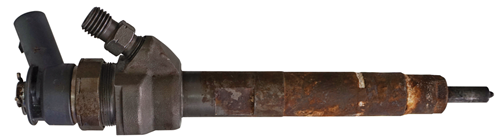

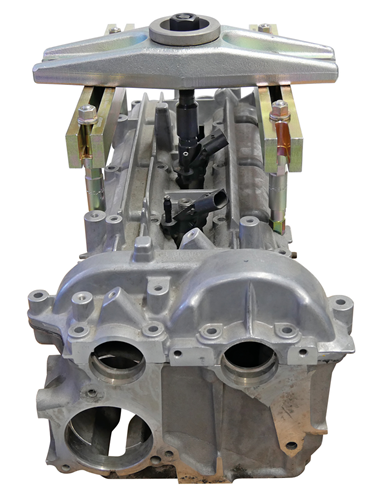

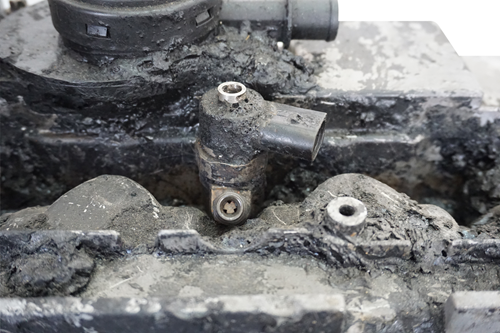

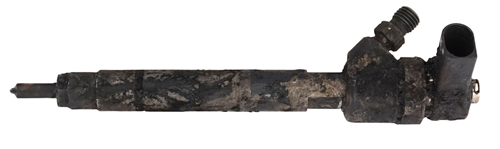

- The injector puller kit enables fast and powerful pulling of severely stuck injectors directly on the vehicle without having to remove the cylinder head.

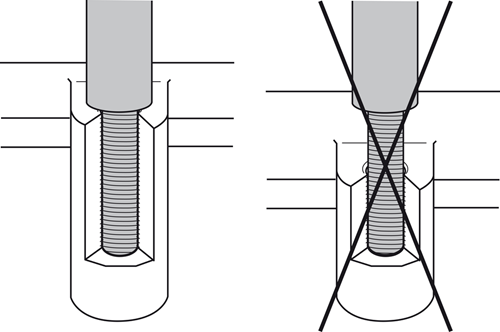

- Depending on the injector, the special 2-part pull spindles with pull adapter can be universally combined in terms of length and connection diameter.
- Due to additional supplements, the injector extractor can be also used for further diesel injectors, e.g. with PSA 2.7, 3.0 Hdi (DT17, DT20); Fiat Ducato + Iveco 2.3, 2.4, 3.0 JTD; Mercedes CDI (OM651); VW, Audi, Seat, Skoda 1.6 TDI (CAYA, CAYB, CAYC, CAYD, CAYE, CLNA); Renault + Nissan + Opel 2.2, 2.5, 3.0 dci (G9T, G9U, ZD3) and Toyota 2.2 (2AD-FHV, 2AD-FTV) and many more.
-
Dimensions and weights
- Total width [mm]: 402 mm
- Total height [mm]: 156 mm
- Total length [mm]: 494 mm
- Weight [kg]: 10,4 kg
-
Scope of delivery

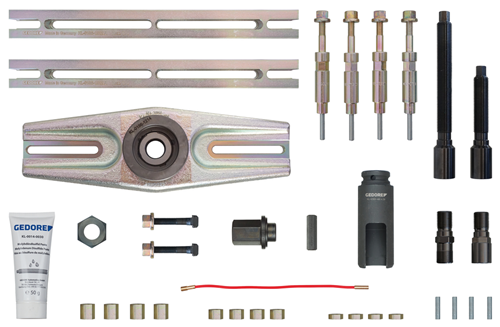

- Parts list (Text): 1x KL-0186-121 A - Pull-off bridge (basic tool) 4x KL-0186-1231-11 - Support bolt 110 mm 4x KL-0186-1235-3 - Grub screw M6 x 45 mm 4x KL-0186-1235-2 - Grub screw M6 x 25 mm 1x KL-0583-1005 B - Pull adapter M17x1 with nut 1x KL-0583-1032 A - Pull adapter M14x1.5 1x KL-0186-1401 - Pull spindle 115 mm 1x KL-0186-1402 - Pull spindle 170 mm 1x KL-0186-1215 - Collar nut M16x1,5 1x KL-0369-4505 A - Special bit insert SW10 1x KL-0369-461 A - Special socket spanner 1x KL-0186-1251 - Spacer nut kit 5 mm 1x KL-0186-1252 - Spacer nut kit 10 mm 1x KL-0186-1253 - Spacer nut kit 15 mm 1x KL-0126-221 - Magnetic lifter flexible 2x KL-4990-2001 - Plastic box 1x KL-0186-1492 B - Foam insert 1x KL-4990-9474 - Plastic case

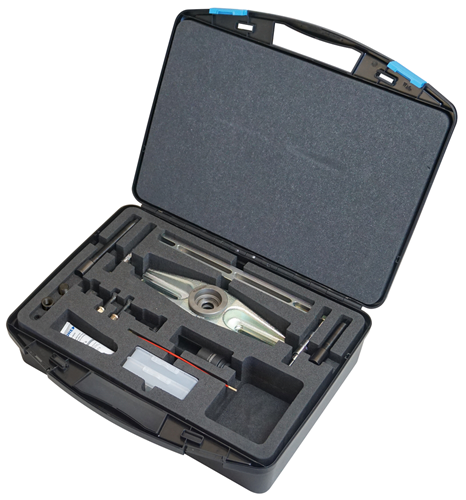

- Storage: Case
- Contents (Qty of pieces): 45
-
Technical characteristics
- Drive type: mechanisch
- Suitability: universal Audi Ford Mazda Mercedes PSA Seat Skoda Volvo VW
- for external thread: M14x1,5
- for injectors from: Bosch Delphi
- for internal thread: M17x1
- for motor type: Diesel
- Motorcodes: Mercedes: OM611, OM612, OM613, OM628, OM629, OM639, OM640, OM642, OM646, OM646 EVO, OM647, OM648. PSA: DV6 16V. Ford: G8DA, G8DB, HHDA, HHJA, HHJB. Volvo: D4164T. Mazda: Y6 DV6 16V.
