Spring Collar Adaptor Ring, Ø 60/90mm
KL-5501-31
/ Code no. 3406059
Spring Collar Adaptor Ring, Ø 60/90mm
KL-5501-31
/ Code no. 3406059
Price on request
Product line
EAN
4046459177814
Product description

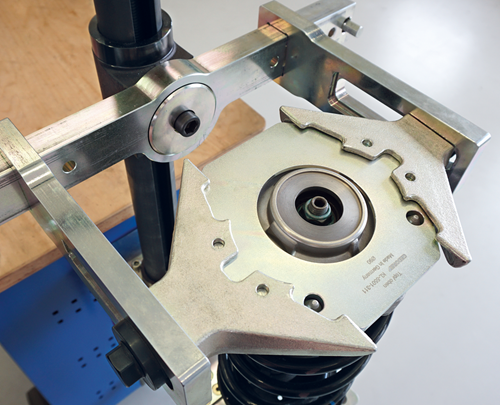

- The plate mounting kit enables the stationary spring compressor KL-5501 / B / C to be securely mounted on the spring plate on the front axle strut.
- For this purpose, the plate holder (90 mm dia.) and, depending on the spring strut, the adapter ring (60 mm dia.) are simply placed on the upper spring collar.
-
Dimensions and weights
- Total width [mm]: 170 mm
- Total length [mm]: 210 mm
- Weight [kg]: 1,9 kg
-
Scope of delivery

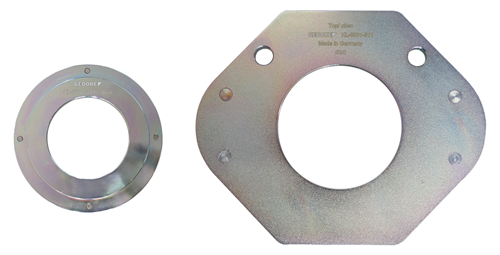

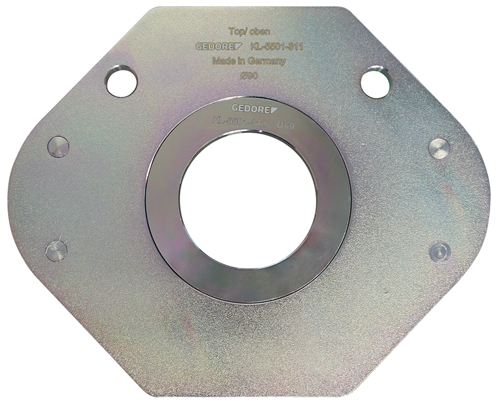

- Parts list (Text): 1x KL-5501-311 - Plate holder Ø90 mm 1x KL-5501-312 - Plate adapter for KL-5501-311, Ø60 mm
- Contents (Qty of pieces): 2
-
Technical characteristics
- Suitability: Audi Cupra Nissan Renault Seat Skoda VW
- Inner diameter (1): 60 mm
- Inner diameter (2): 90 mm
- Strength: 10 mm
