Holding-Down Tool Set
KL-0033-300 E
/ Code no. 3275205
Holding-Down Tool Set
KL-0033-300 E
/ Code no. 3275205
Price on request
Product line
EAN
4046459172345
Product description
- The hold-down kit facilitates the removal and installation of suspension springs on transverse and trailing arm axles. Recommended e.g. for removal and installation with the internal spring tensioner - KL-0033-10 E.

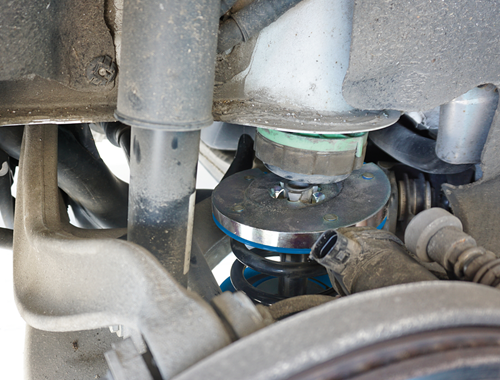

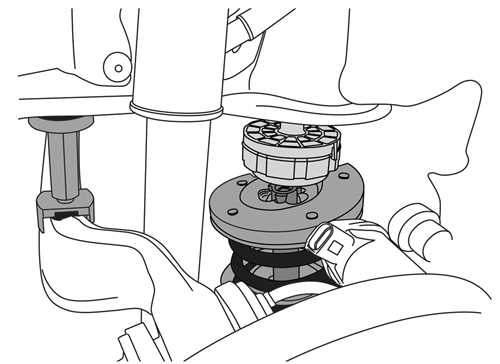

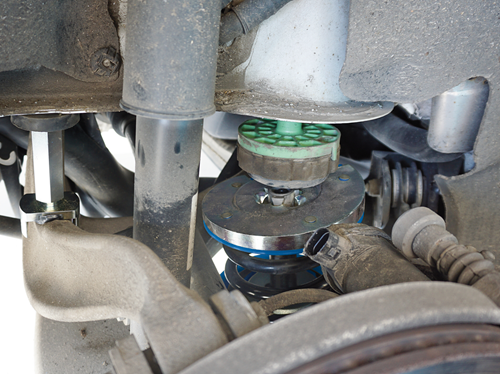

- The hold-down is inserted between the upper axle guide and the vehicle body and slightly pretensioned.

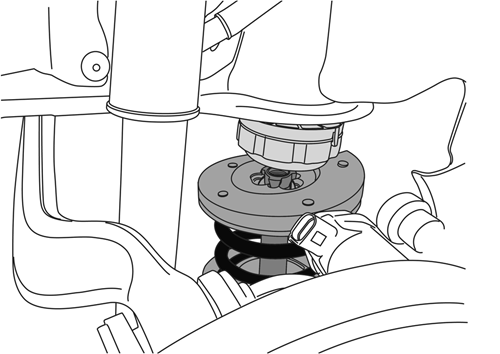

- It holds the wheel suspension in its current position while compressing the chassis spring, which reduces the required clamping path and makes the removal of the suspension spring much easier.
-
Dimensions and weights
- Total width [mm]: 140 mm
- Total height [mm]: 41 mm
- Total length [mm]: 223 mm
-

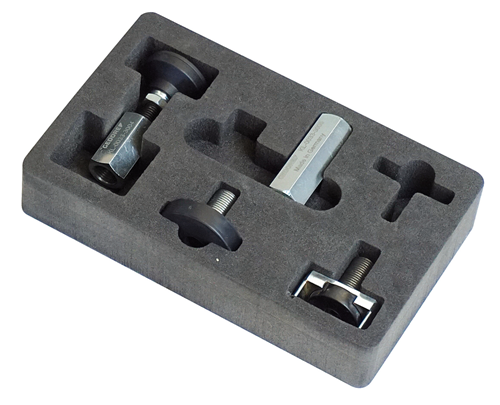

Scope of delivery

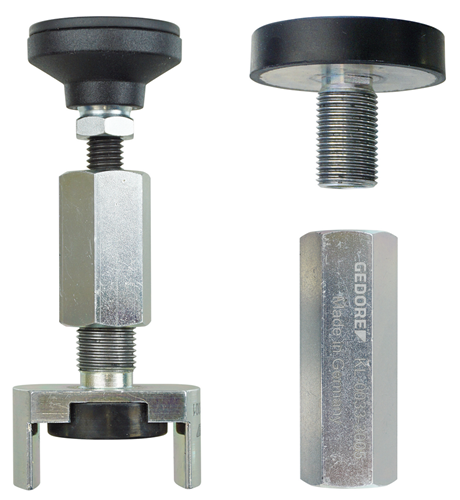

- Parts list (Text): 1x KL-0033-3001 - Support fork 1x KL-0033-3002 - Support diameter 50 mm 1x KL-0033-3003 A - Support diameter 40 mm 1x KL-0033-3004 - Adjusting nut short 1x KL-0033-3005 - Adjusting nut long 1x KL-0033-3005 - Foam insert
- Storage: Foam insert
- Contents (Qty of pieces): 5
-
Technical characteristics
- Drive connector hexagon [metric]: 22 mm
- Diameter 1 [mm]: 40 mm
- Diameter 2 [mm]: 50 mm
- Suitability: universal Audi BMW Ford Mercedes Porsche Seat Skoda VW
- Clamping travel 1 [mm]: 80 - 113 mm
- Clamping stroke 2 [mm]: 105 - 138 mm
