Pull Spindle, M14
KL-0039-1914-1
/ Code no. 2360667
Pull Spindle, M14
KL-0039-1914-1
/ Code no. 2360667
Price on request
Product line
EAN
4046459063445
Product description
- For the hydraulic drive of the KL-0039 series, in combination with hydraulic cylinder KL-0040-2500.

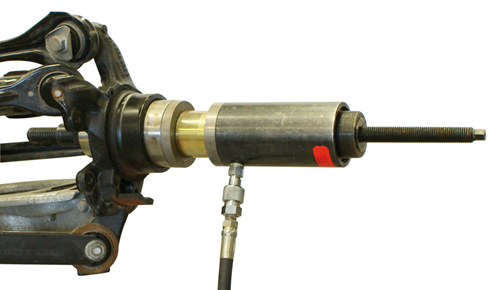

- For removing and installing bearings, bushings, etc.
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive type: hydraulisch
- Drive connector hexagon [metric]: 13,0 mm
- Load (max.) [t]: 9 t
- Suitability: universal
- Thread dimension: M14
- Thread dimension 2: M20
- Spindle total length: 590 mm
- Spindle Thread length (usable) [mm].: 210 mm
- Spindle Thread length (usable) 2 [mm]: 300 mm
