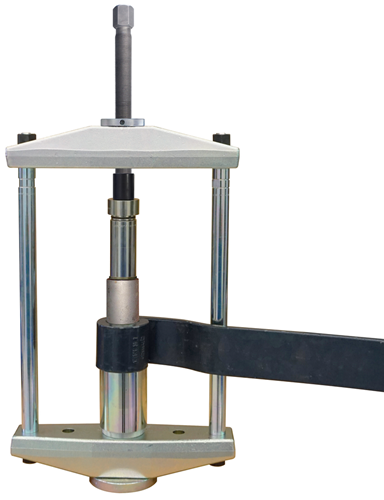

Press frame, commercial vehicles, 28 t (without bridge KL-1005-100 A)
KL-1039-1111
/ Code no. 3275280
Press frame, commercial vehicles, 28 t (without bridge KL-1005-100 A)
KL-1039-1111
/ Code no. 3275280
Price on request
Product line
EAN
4046459172451
Product description
- The large and massive commercial vehicle press frame enables the pressing out and pressing in of various bushings, bearings or bolts directly on the vehicle.
- For example, on boom arms, tippers, skip loaders, lifting arms, hook lift systems, chassis parts and much more.
- With additional pressure/support sleeves from the KL-0039-series this can easily be supplemented with further diameters..
- The base included in the scope of delivery also allows the mobile commercial vehicle press frame to be placed on a workbench, for example, as well as for stationary use as a light-weight standing press when on the road, e.g. in commercial vehicle service or repair vehicles.
- The NFZ press frame can also be quickly adjusted in length and width using the extension rods and the holes in the base plates.
-
Dimensions and weights
- Weight [kg]: 34 kg
-
Scope of delivery
- Parts list (Text): 1x KL-1039-1101 - Base plate 2¾"-16 UN 2x KL-1039-1102 - Tie rod M22 2x KL-1005-1014 - Collar nut M22 1x KL-1039-1105 - Adapter 2¾"-16 UNS to Ø 30 mm 2x KL-1039-1103 - Pull rod M22 extension 1x KL-1039-1106 - M24 pressure nut extension 1x KL-1039-1107 - Mounting Foot 1x KL-1039-7110 - Pressure/Support Sleeve, long, Ø 110/102 mm 1x KL-0039-1790 - Pressure/Support Sleeve, long, Ø 90/82 mm 1x KL-0039-1770 - Pressure/Support Sleeve, long, Ø 70/62 mm 1x KL-0039-1750 - Pressure/Support Sleeve, long, Ø 50/42 mm 1x KL-0039-1740 - Pressure/Support Sleeve, long, Ø 40/32 mm 1x KL-0039-1730 - Pressure/Support Sleeve, long, Ø 30/22 mm
- Contents (Qty of pieces): 16
-
Technical characteristics
- Drive type: hydraulisch mechanisch
- Load (max.) [t]: 28 t
- Width, inside (press frame) [mm]: 180 mm
- Width, inside (press frame) 2 [mm]: 250 mm
- Width, inside (press frame) 3 [mm]: 320 mm
- Suitability: universal
- Length, inside (press frame) [mm]: 500 mm
- Length, inside (press frame) 2 [mm]: 700 mm
