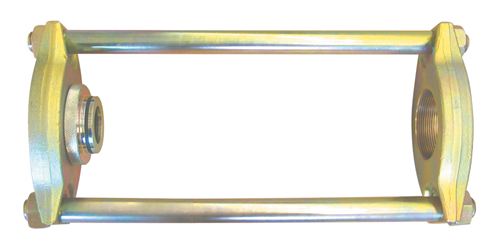

Press Frame, 12t
KL-0039-1140
/ Code no. 2178923
Press Frame, 12t
KL-0039-1140
/ Code no. 2178923
Price on request
Product line
EAN
4046459091417
Product description

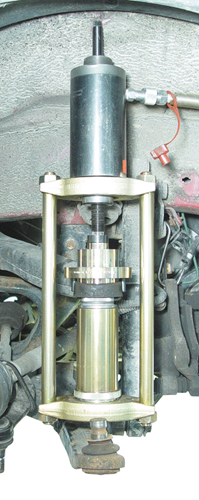

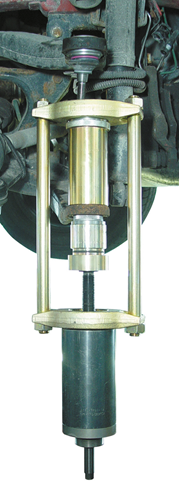

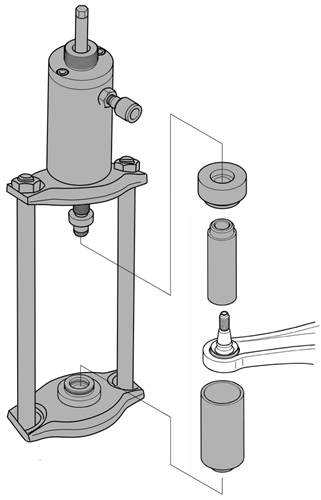

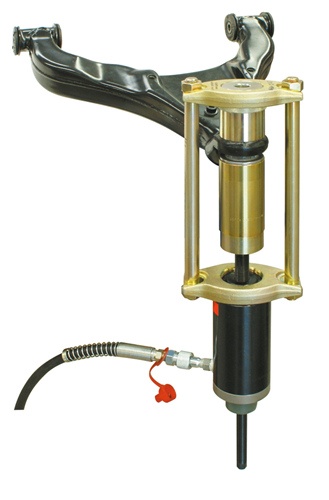

- Enables an easy, quick and secure forcing out and forcing in of bushings, bearings, suspension joints, etc.
- Due to its use with the extensive pressure / support sleeve assortment of the KL-0039 series, the press frame is universally applicable.

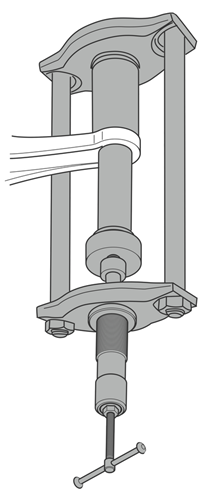

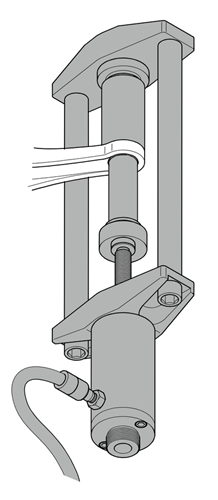

- The press frame is suitable for a mechanical as well as for a hydraulic use.
-
Dimensions and weights
- Total width [mm]: 168 mm
- Total length [mm]: 360 mm
- Weight [kg]: 4,7 kg
-
Scope of delivery
- Parts list (Text): 1x KL-0039-114 - Tie rod pair 275 mm long, with hexagon nuts 1x KL-0039-1144 - Base plate 2¼"-14 UNS 1x KL-0039-1105 - Adapter 2¼"-14 UNS to a 30 mm diameter with O-ring
- Contents (Qty of pieces): 9
-
Technical characteristics
- Drive type: hydraulisch mechanisch
- Load (max.) [t]: 12 t
- Width, inside (press frame) [mm]: 115 mm
- Suitability: universal
- Length, inside (press frame) [mm]: 275 mm
- Cylinder mounting thread: 2¼"-14 UNS
