Mechanical Drive Set, HGV
KL-1005-800
/ Code no. 3412881
Mechanical Drive Set, HGV
KL-1005-800
/ Code no. 3412881
Price on request
Product line
EAN
4046459179085
Product description
- The drive set enables the simple mechanical drive of the NFZ wheel hub puller sets KL-1005-100 A as well as KL-1005-111.
- In combination with the pressure spindle 1.3306500, available as an accessory, it can also be used on the NFZ press frame KL-1039-111.
-
Dimensions and weights
- Weight [kg]: 3,5 kg
-
Scope of delivery

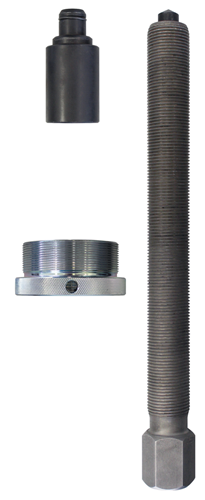

- Parts list (Text): 1x KL-1005-8002 Pressure piece with O-ring 1x KL-1005-8001 Adapter 2 3/4"-16 US to G1 1x 13306310 - pressure spindle G1" x 310 mm
- Contents (Qty of pieces): 3
-
Technical characteristics
- Drive type: mechanisch
- Drive connector hexagon [metric]: 36,0 mm
- Suitability: universal
- Spindle total length: 400 mm
- Spindle Thread length (usable) [mm].: 310 mm
