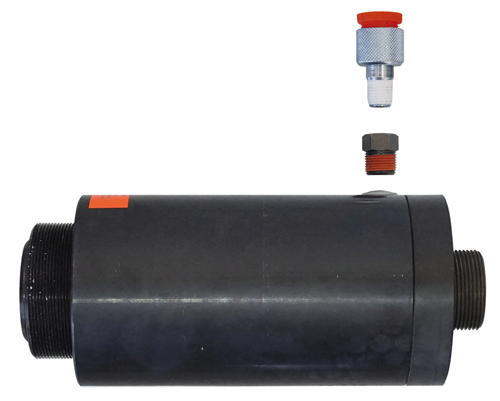

Hydraulic Cylinder, 28 t
KL-0040-2800
/ Code no. 2016893
Hydraulic Cylinder, 28 t
KL-0040-2800
/ Code no. 2016893
Price on request
Product line
EAN
4046459063780
Product description
- Due to its special design as a tubular cylinder, the KL-0040-2800 hydraulic cylinder (28 t) can be used to perform pulling and pushing operations in conjunction with the corresponding spindles available as accessories.

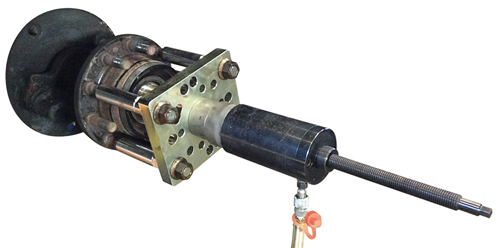

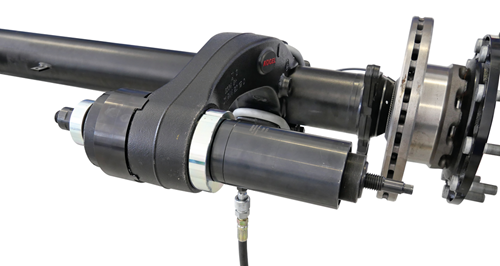

- In conjunction with the various GEDORE Automotive tools, the hydraulic cylinder can be used for the removal and installation of cardan shafts, wheel hubs, wheel bearings, silent bearings and support joints.
-
Dimensions and weights
- Weight [kg]: 10,5 kg
-
Scope of delivery
- Contents (Qty of pieces): 3
-
Technical characteristics
- Anschlussgewinde Druckseitig: 2 3/4" - 16 UN
- Anschlussgewinde für Hydraulik-Kupplung: 3/8" NPT
- Anschlussgewinde Zugseitig: M42x2
- Drive type: hydraulisch
- Suitability: universal
- Stroke: 50 mm
- Internal thread: M24
- Piston surface: 40,6 cm²
- Cylinder body length: 235 - 285 mm
- Oil pressure (max.): 700 bar
- Oil volume (max.): 216 cm³
- Permissible force (max.): 285 kN (28 t)
- Cylinder diameter: 99 mm
