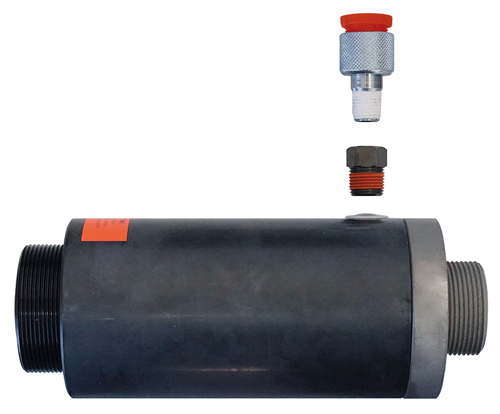

Hydraulic Cylinder, 17 t
KL-0040-2500
/ Code no. 1751441
Hydraulic Cylinder, 17 t
KL-0040-2500
/ Code no. 1751441
Price on request
Product line
EAN
4046459002697
Product description
- Due to its special design as a tubular cylinder, the KL-0040-2500 hydraulic cylinder (17 t) can be used to perform pulling as well as pushing operations in conjunction with the corresponding spindles available as accessories.
- In conjunction with the various GEDORE Automotive tools, the hydraulic cylinder can be used for the removal and installation of cardan shafts, wheel hubs, wheel bearings, silent bearings and support joints.
-
Dimensions and weights
- Weight [kg]: 5,7 kg
-
Scope of delivery
- Contents (Qty of pieces): 3
-
Technical characteristics
- Anschlussgewinde Druckseitig: 2 1/4" - 14 UNS
- Anschlussgewinde für Hydraulik-Kupplung: 3/8" NPT
- Anschlussgewinde Zugseitig: M42x2
- Drive type: hydraulisch
- Suitability: universal
- Stroke: 45 mm
- Internal thread: M20
- Piston surface: 27 cm²
- Cylinder body length: 202 - 247 mm
- Oil pressure (max.): 700 bar
- Oil volume (max.): 122 cm³
- Permissible force (max.): 170 kN (17 t)
- Cylinder diameter: 80 mm
