Upgrade Toolkit for Double Clutch, VW
KL-0500-81 KA
/ Code no. 3411648
Upgrade Toolkit for Double Clutch, VW
KL-0500-81 KA
/ Code no. 3411648
Price on request
Product line
EAN
4046459178798
Product description
- The double clutch supplement VW enables, in combination with the double clutch basic tool kit KL-0500-80 K / KA (LuK 400 0418 10), the professional removal or installation as well as adjustment of dry double clutch systems on VW-Audi.
-
Dimensions and weights
- Total width [mm]: 402 mm
- Total height [mm]: 156 mm
- Total length [mm]: 494 mm
- Weight [kg]: 10 kg
-
Scope of delivery

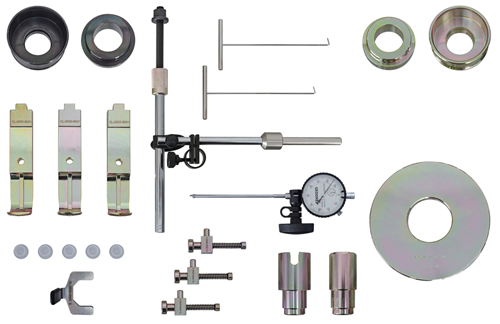

- Parts list (Text): 1x KL-0500-6030 - Supporting sleeve removal 1x KL-0500-6031 - Pressure sleeve installation 1x KL-0500-6032 - Spacer sleeve setting dimension 32,92 mm 1x KL-0500-6033 - Spacer sleeve setting dimension 48,63 mm 1x KL-0500-6034 - Weight 3.5 kg 1x KL-0500-6035 LUK - Feeler gauge for spacer sleeves 3x KL-0500-6041 - Hook 3x KL-0500-6042 - Spring-loaded clamping piece for VW 2x KL-0500-6051 - Draw hook 1x KL-0500-606 - Measuring tripod with dial gauge 5x KL-0500-6071 - Closing plug Ø 12 mm 1x KL-0500-6081 - Spacer sleeve setting dimension 48,42 mm 1x KL-0500-6082 - Spacer sleeve setting dimension 32,12 mm 1x KL-0500-8190 A LUK - Plastic case

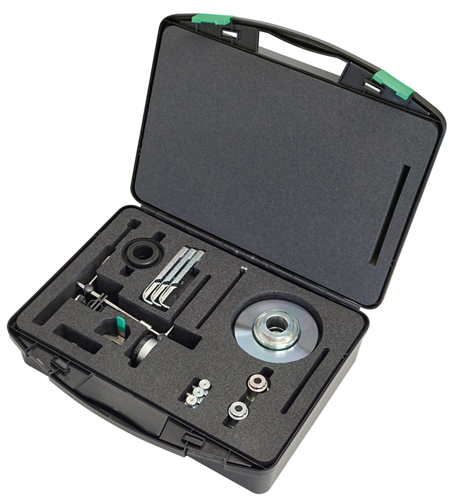

- Storage: Case
- Contents (Qty of pieces): 23
-
Technical characteristics
- Suitability: Audi Seat Skoda VW
