Base Toolkit for Double Clutch
KL-0500-80 KA
/ Code no. 3411664
Base Toolkit for Double Clutch
KL-0500-80 KA
/ Code no. 3411664
Price on request
Product line
EAN
4046459178804
Product description
- For a professional maintenance on double clutch systems, special tools are absolutely required, in order to avoid costly damage in advance.

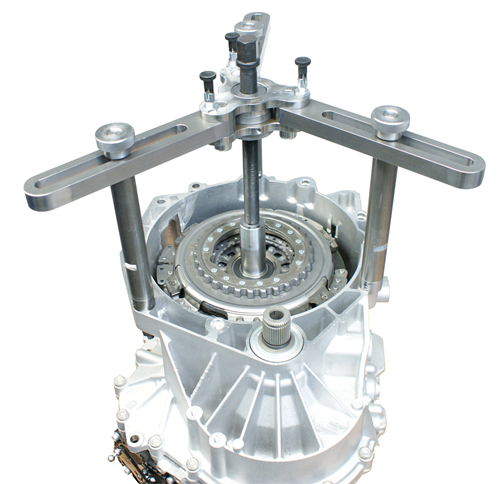

- The double clutch base tool set KL-0500-80 KA enables a professional maintenance of all currently available LuK* double clutch systems (dry clutch version), when used in combination with the vehicle-specific supplementary kits.
- The modular and future-oriented construction of the double clutch basic tool kit KL-0500-80 KA can be also extended for future double clutch systems due to the vehicle-specific supplementary kits.
- *LuK, an enterprise of the Schaeffler Group, is an internationally famous automotive supplier for clutch and gearbox systems, converters and dampers.
-
Dimensions and weights
- Total width [mm]: 402 mm
- Total height [mm]: 156 mm
- Total length [mm]: 494 mm
- Weight [kg]: 8,7 kg
-
Scope of delivery

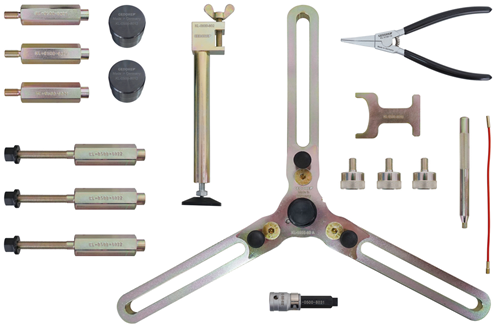

- Parts list (Text): 1x KL-0500-601 A - Base unit 1x KL-0500-802 - Gearbox support with height adjustment 3x KL-0350-0009 - Hexagon collar nut M10 3x KL-0500-6020 - Knurled screw 3x KL-0500-6021 - Threaded bolt M10, 100 mm long 3x KL-0500-6022 - Threaded bolt M10, 160 mm long 1x KL-0500-8010 - Socket spanner 47 mm (waf) 1x KL-0500-8011 - 7-sided socket spanner 2x KL-0500-8012 - Closing plug differential gear 1x KL-0500-803 - ZMS reset tool 1x KL-0126-221 - Magnetic lifter, flexible 1x KL-0192-12 - Locking ring pliers angled 1x KL-0500-8090 A - Plastic case

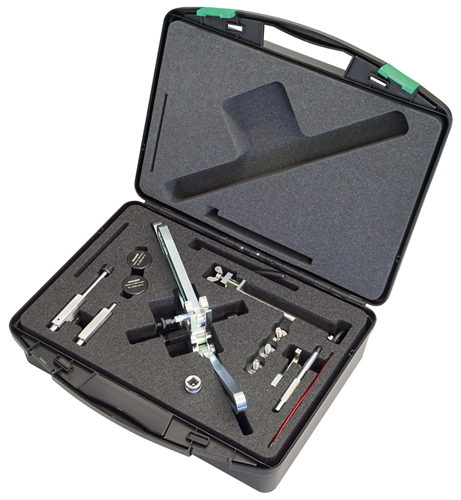

- Storage: Case
- Contents (Qty of pieces): 21
-
Technical characteristics
- Suitability: Audi Ford Renault Seat Skoda VW
