Wheel Hub Puller Set, HGV
KL-1005-100 A
/ Code no. 3283666
Wheel Hub Puller Set, HGV
KL-1005-100 A
/ Code no. 3283666
Price on request
Product line
EAN
4046459173823
Product description

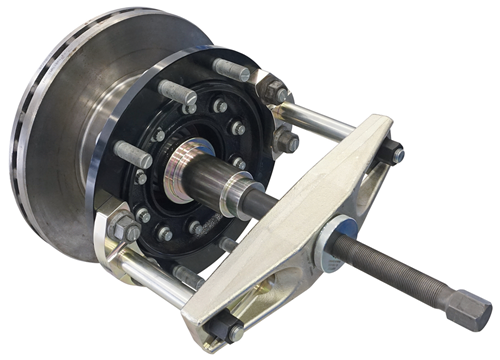

- The wheel hub puller permits quick and professional removing of wheel hub with removable hub caps.
- The wheel hub is pulled off via the wheel studs.
- The various thrust pieces ensure a central support over the axle tube.
- In connection with the 28t hydraulic cylinder with hand pump (accessories) tightly stuck wheel hubs may be pulled easily.
-
Dimensions and weights
- Weight [kg]: 22 kg
-
Scope of delivery
- Parts list (Text): 1x KL-1005-101 A - Base frame 1x KL-1005-1021 - Thrust piece (universell) 1x KL-1005-1022 - Thrust / support sleeve short 103 / 90 mm dia. 1x KL-1005-1023 - Thrust / support sleeve long 73 / 59 mm dia.
- Contents (Qty of pieces): 4
-
Technical characteristics
- Drive type: hydraulisch mechanisch
- Load (max.) [t]: 28 t
- Width, inside (press frame) [mm]: 178 mm - 320 mm
- Suitability: universal DAF Iveco MAN Mercedes Renault Scania Volvo
- Length, inside (press frame) [mm]: 152 mm
- Wheel stud circles: 8 x 275 mm | 10 x 335 mm
