Wheel Bearing Tool, Mercedes / VW
KL-0041-510
/ Code no. 3283690
Wheel Bearing Tool, Mercedes / VW
KL-0041-510
/ Code no. 3283690
Price on request
Product line
EAN
4046459173847
Product description

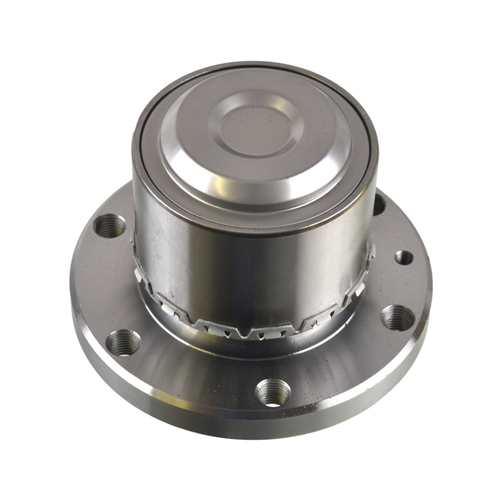

- For removing and installing wheel hub bearing units on the front axle of the vehicle.
- Due to the special design of the wheel hub bearing unit, common ways of removing and installation are not possible, as the wheel hub is not equipped with a centre bore and covers the outer bearing ring of the wheel bearing.

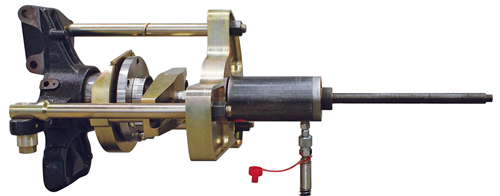

- The particular design of the tool enables a professional replacement of the wheel hub bearing unit on the vehicle.
- The wheel hub bearing unit is then only pressed in via the outer bearing ring, which prevents the wheel bearing from being damaged.
-
Dimensions and weights
- Weight [kg]: 30,8 kg
-
Scope of delivery

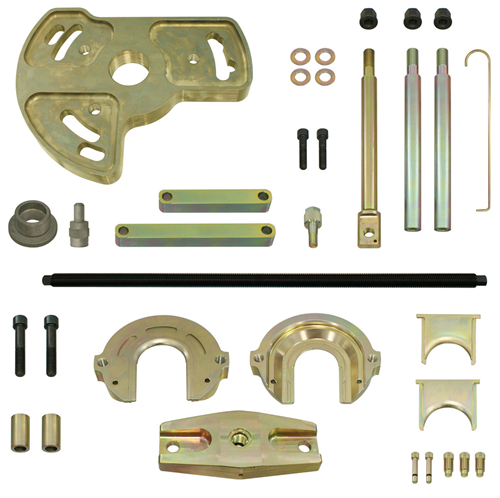

- Parts list (Text): 1x KL-0041-501 - Basic tool 1x KL-0041-502 - Pull / pressure plate for bearing diameter of 96 mm with bridge 1x KL-0041-5030 - Supplementary kit pull / pressure plate for bearing diameter 92 mm
- Contents (Qty of pieces): 34
-
Technical characteristics
- Drive type: hydraulisch
- Suitability: Mercedes VW
