Supplement set for closed wheel bearings, Ford Transit
KL-0040-862
/ Code no. 3292770
Supplement set for closed wheel bearings, Ford Transit
KL-0040-862
/ Code no. 3292770
Price on request
Product line
EAN
4046459175452
Product description

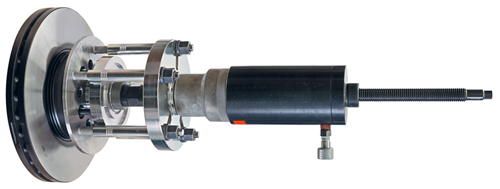

- The supplementary kit enables the removal of the bolted wheel bearing unit with wheel hub and brake disc on the front axle, especially in the case of wheel bearings without a centre bore in closed design, and subsequently the removal and pressing in of the wheel hub on the wheel bearing unit.
- Required, for example, when replacing the wheel bearing and brake discs, as these are located behind the wheel hub.
-
Dimensions and weights
- Weight [kg]: 9,3 kg
-
Scope of delivery

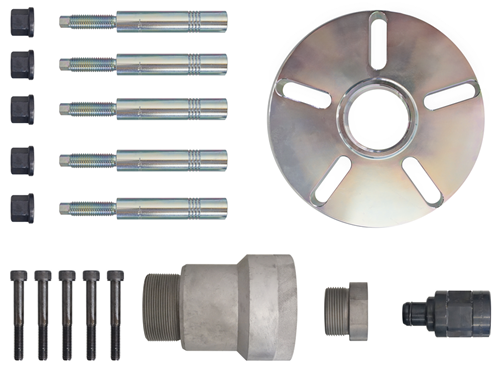

- Parts list (Text): 1x KL-0174-330 - Hole disc size 3 (5-hole) 1x KL-0040-2812-5 - Thrust nut, M24 1x KL-0040-8621 - Thrust adapter 1x KL-0174-572 - Adapter 2¼" to 2¾" 5x KL-0174-764 A - Draw bolt type M, M14x1.5 mm 5x KL-0174-701 - Hexagon collar nut, M14 5x KL-0186-9000-3 - Cap screw, M10 x 75 mm
- Contents (Qty of pieces): 19
-
Technical characteristics
- Drive type: hydraulisch
- Load (max.) [t]: 28 t
- Suitability: Ford
- Wheel stud circles: 97,5 mm
- Bolt circle diameter 2 [mm]: 111 mm
