Silentbloc Tool Set, HGV
KL-1010-90 K
/ Code no. 3425703
Silentbloc Tool Set, HGV
KL-1010-90 K
/ Code no. 3425703
Price on request
Product line
EAN
4046459183556
Product description

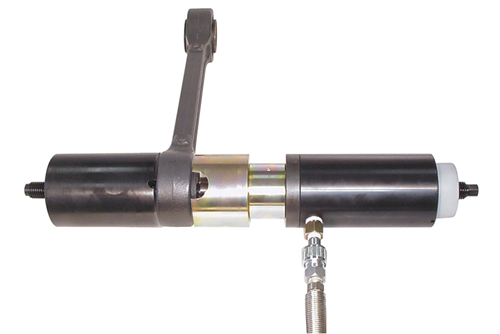

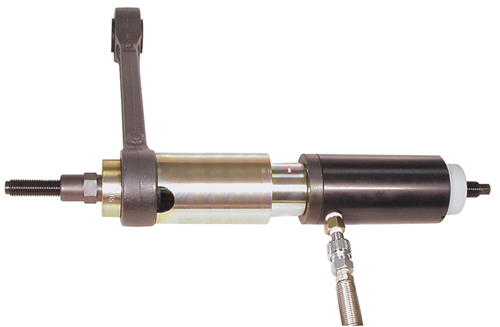

- The silent block tool kit for commercial vehicles enables quick and professional removal and insertion of slotted and closed silent blocks directly on the vehicle.
-
Dimensions and weights
- Total width [mm]: 442 mm
- Total height [mm]: 151 mm
- Total depth [mm]: 357 mm
- Weight [kg]: 17,5 kg
-
Scope of delivery

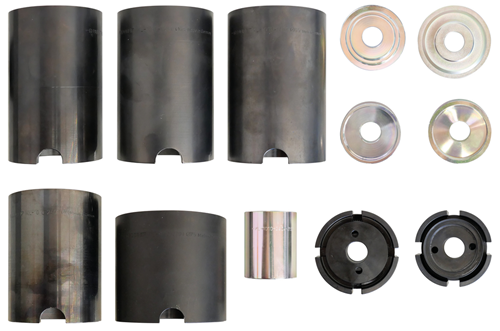

- Parts list (Text): 1x KL-1010-1201 - Conical sleeve 1x KL-1010-1205 - Thrust piece, removal Ø 60 mm 1x KL-1010-1301 - Conical sleeve Ø 63 mm 1x KL-1010-1305 - Thrust piece, removal Ø 63 mm 1x KL-1010-1401 - Conical sleeve 1x KL-1010-1402 A - Resilient thrust piece Ø 65 mm 1x KL-1010-1406 - Thrust piece, removal Ø 65 mm 1x KL-1010-2201 - Conical sleeve Ø 75 mm 1x KL-1010-2202 - Resilient thrust piece Ø 75 mm 1x KL-1010-2205 - Thrust piece, removal Ø 75 mm 1x KL-1010-2401 - Conical sleeve Ø 51 mm 1x KL-1010-2404 - Thrust piece Ø 50 mm 1x KL-1010-1090-1 - Foam Insert 1x KL-4600-1094 - Storage case

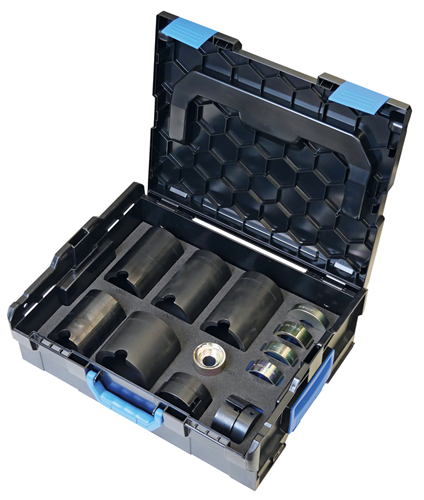

- Storage: L-BOXX
- Contents (Qty of pieces): 12
-
Technical characteristics
- Drive type: hydraulisch
- Load (max.) [t]: 28 t
- Suitability: universal DAF Iveco MAN Mercedes Renault Scania Volvo
- for outer Ø, fitted [mm]: 51 mm 60 mm 63 mm 65 mm 75 mm
