Fixing Tool Kit, VW Assembly Carrier
KL-0220-10 K
/ Code no. 2968355
Fixing Tool Kit, VW Assembly Carrier
KL-0220-10 K
/ Code no. 2968355
Price on request
Product line
EAN
4046459147619
Product description

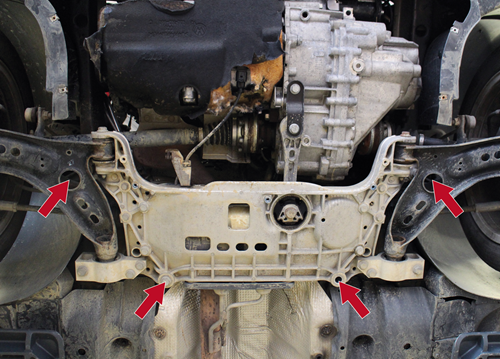

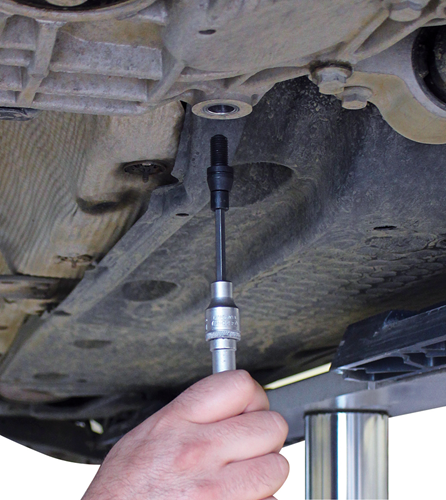

- The tools allow for the professional installation/adjustment of assembly carriers (with fastening screws having an M12x1.5 or M14x1.5 thread).
- Necessary after maintenance work/repairs where the assembly carrier has been loosened/released, for example, after the replacement of silentblocs, wishbone etc.
-
Dimensions and weights
- Total length [mm]: 50 mm
-
Scope of delivery

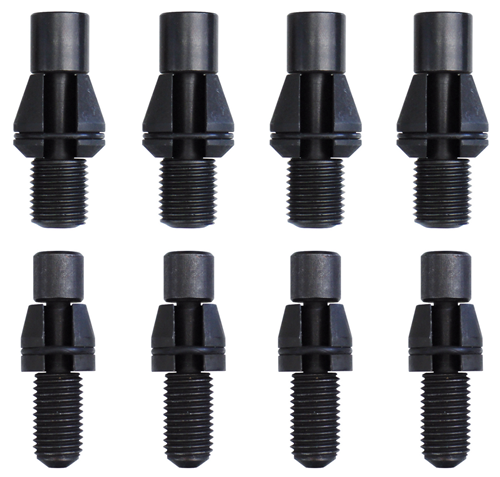

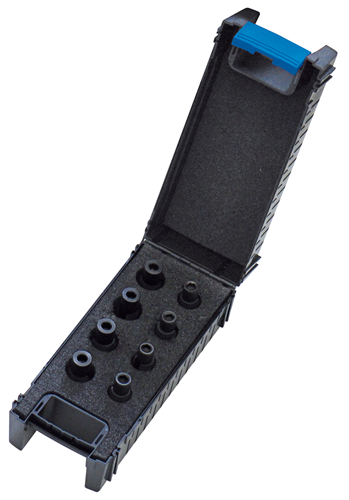

- Parts list (Text): 4x KL-0220-101 - Fastening bolt M12x1.5 4x KL-0220-102 - Fastening bolt M14x1.5 1x KL-0220-1090 - Plastic case
- Contents (Qty of pieces): 8
-
Technical characteristics
- Drive hexagon [mm]: 6 mm
- Tightening torque (max.): 20 Nm
- Suitability: Audi Seat Skoda VW
- Thread dimension: M12x1,5
- Thread dimension 2: M14x1,5
