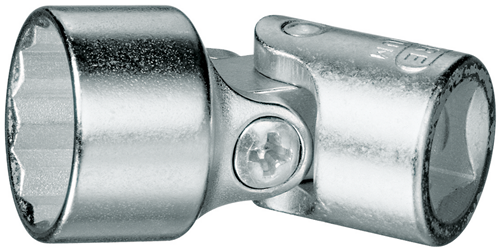

Joint socket wrench insert 3/8" UD profile 10 mm
DG 30 10
/ Code no. 6240630
Joint socket wrench insert 3/8" UD profile 10 mm
DG 30 10
/ Code no. 6240630
Price on request
Product line
EAN
4010886624067
Product description
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Hand-operated
- Chrome-vanadium steel 31CrV3, chrome-plated
-
Dimensions and weights
- Total length [mm]: 41,5 mm
- Weight [kg]: 0,042 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

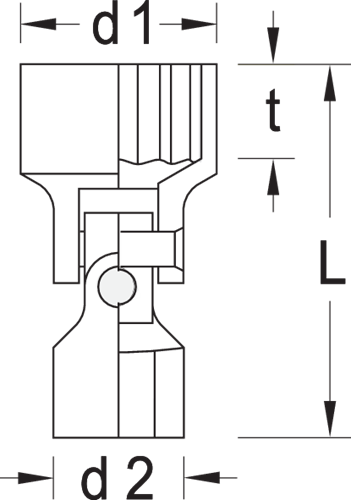

Technical characteristics
- Diameter 1 [mm]: 14,7
- Diameter 2 [mm]: 19,0
- Head depth 1 [mm]: 8,0
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3120 – C 10 ISO 1174
- Surface: chrome‑plated
- Ring profile: UNIT-DRIVE
- Width across flats 1 [mm]: 10
- Safety: Kugelfangrille
