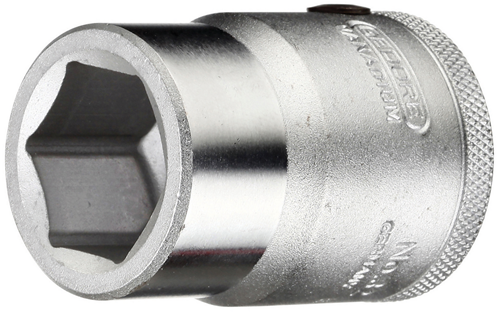

Socket 3/4" hex 55 mm
32 55
/ Code no. 6271430
Socket 3/4" hex 55 mm
32 55
/ Code no. 6271430
Price on request
Product line
EAN
4010886627143
Product description
- Acc. to DIN 3124, ISO 2725-1
- Square drive as per DIN 3120 - D 20, ISO 1174, with locking pin
- Manually operated, with non-slip cross knurling
- Vanadium steel 31CrV3, matt chromium-plated
-
Dimensions and weights
- Total width [mm]: 75 mm
- Total height [mm]: 75 mm
- Total length [mm]: 67 mm
- Weight [kg]: 1,05 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

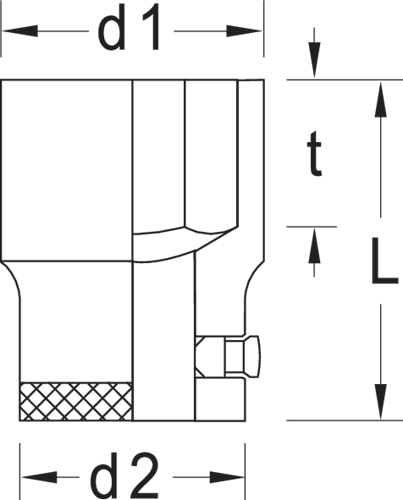

Technical characteristics
- Drive mount, square [metric]: 20,0 mm
- Drive connector square [inch]: 3/4"
- Working length: 68,5 mm
- Insert-Ø 1: 74,6 mm
- Insert-Ø 2: 53,0 mm
- Operating depth: 33,0 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3124 ISO 2725-1 DIN 3120 – D 20 ISO 1174
- Surface: matte chrome‑plated
- Width across flats 1 [mm]: 55
- Safety: Stiftsicherung
