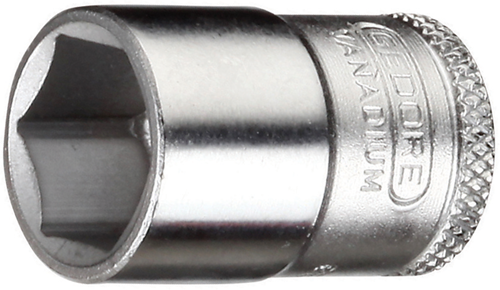

Socket 3/8" hex 20 mm
30 20
/ Code no. 6234820
Socket 3/8" hex 20 mm
30 20
/ Code no. 6234820
Price on request
Product line
EAN
4010886623480
Product description
- Acc. to DIN 3124, ISO 2725-1
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, polished, chrome-plated
-
Dimensions and weights
- Total width [mm]: 27 mm
- Total height [mm]: 27 mm
- Total length [mm]: 31 mm
- Weight [kg]: 0,078 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

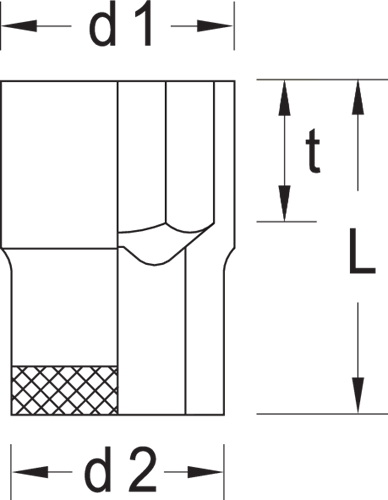

Technical characteristics
- Drive mount, square [metric]: 10,0 mm
- Drive connector square [inch]: 3/8"
- Working length: 31,0 mm
- Insert-Ø 1: 27,2 mm
- Insert-Ø 2: 24,5 mm
- Operating depth: 12,5 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3124 ISO 2725-1 DIN 3120 – C 10 ISO 1174
- Surface: ground chrome‑plated
- Width across flats 1 [mm]: 20
- Safety: Kugelfangrille
