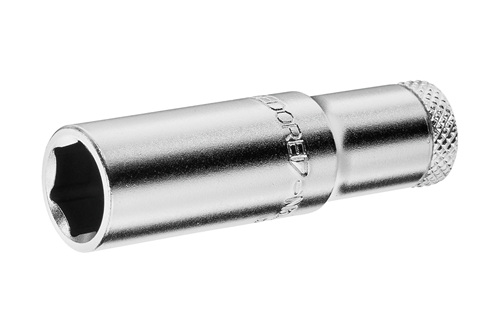

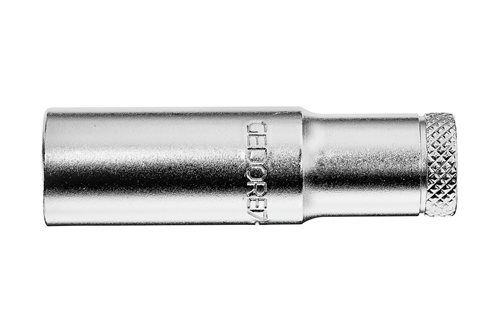

Socket wrench insert 1/4" long 6-point 1/4"

20 L 1/4AF / Code no. 6193020

Socket wrench insert 1/4" long 6-point 1/4" - 6193020 (1)

Socket wrench insert 1/4" long 6-point 1/4" - 6193020 (2)

Socket wrench insert 1/4" long 6-point 1/4" - 6193020 (3)

Socket wrench insert 1/4" long 6-point 1/4" - 6193020 (1) (Thumbnail)

Socket wrench insert 1/4" long 6-point 1/4" - 6193020 (2) (Thumbnail)

Socket wrench insert 1/4" long 6-point 1/4" - 6193020 (3) (Thumbnail)

Socket wrench insert 1/4" long 6-point 1/4"

20 L 1/4AF / Code no. 6193020

Price on request

BUY ONLINE Find A Dealer

Product line

EAN 4010886619308

Product description

Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
Hand operated, knurled for good grip
GEDORE vanadium steel 31CrV3, polished, chrome-plated

Dimensions and weights
- Total length [mm]: 50 mm
- Weight [kg]: 0,017 kg
Scope of delivery
- Contents (Qty of pieces): 1

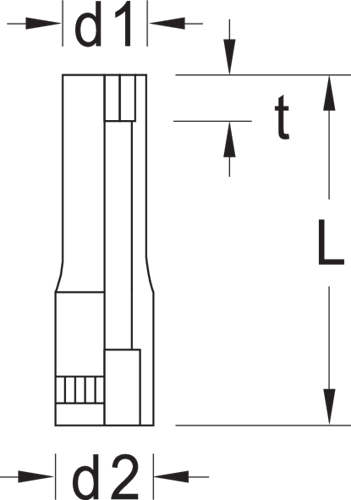

Technical characteristics
- Drive mount, square [metric]: 6,0 mm
- Drive connector square [inch]: 1/4"
- Insert-Ø 1: 9,8 mm
- Insert-Ø 2: 12,0 mm
- Operating depth: 10,0 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 6,3 ISO 1174 DIN 3124 ISO 2725-1
- Surface: matte chrome‑plated
- Width across flats 1 [AF]: 1/4"
- Safety: Kugelfangrille

Available variants

Socket wrench insert 1/4" long 6-point 1/4" - 6193020

Socket wrench insert 1/4" long 6-point 1/4"

6193020 / 20 L 1/4AF

Price on request

‌

Socket wrench insert 1/4" long 6-point 3/16" - 6192800

Socket wrench insert 1/4" long 6-point 3/16"

6192800 / 20 L 3/16AF

Price on request

Socket wrench insert 1/4" long 6-point 7/32" - 6192990

Socket wrench insert 1/4" long 6-point 7/32"

6192990 / 20 L 7/32AF

Price on request

Socket wrench insert 1/4" long 6-point 9/32" - 6193100

Socket wrench insert 1/4" long 6-point 9/32"

6193100 / 20 L 9/32AF

Price on request

Socket wrench insert 1/4" long 6-point 5/16" - 6193290

Socket wrench insert 1/4" long 6-point 5/16"

6193290 / 20 L 5/16AF

Price on request

Socket wrench insert 1/4" long 6-point 11/32" - 6193370

Socket wrench insert 1/4" long 6-point 11/32"

6193370 / 20 L 11/32AF

Price on request

Socket wrench insert 1/4" long 6-point 3/8" - 6193450

Socket wrench insert 1/4" long 6-point 3/8"

6193450 / 20 L 3/8AF

Price on request

Socket wrench insert 1/4" long 6-point 7/16" - 6193530

Socket wrench insert 1/4" long 6-point 7/16"

6193530 / 20 L 7/16AF

Price on request

Socket wrench insert 1/4" long 6-point 1/2" - 6193610

Socket wrench insert 1/4" long 6-point 1/2"

6193610 / 20 L 1/2AF

Price on request
