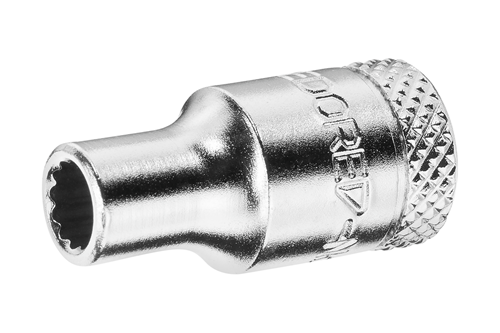

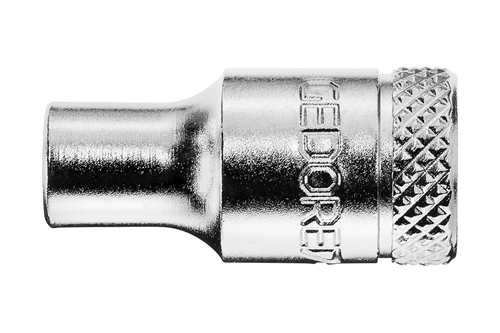

Socket wrench insert 1/4" UD profile 12 mm
D 20 12
/ Code no. 6226480
Socket wrench insert 1/4" UD profile 12 mm
D 20 12
/ Code no. 6226480
Price on request
Product line
EAN
4010886622643
Product description
- Acc. to DIN 3124, ISO 2725-1
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Hand operated, knurled for good grip
- Chrome-vanadium steel, matt chrome-plated
-

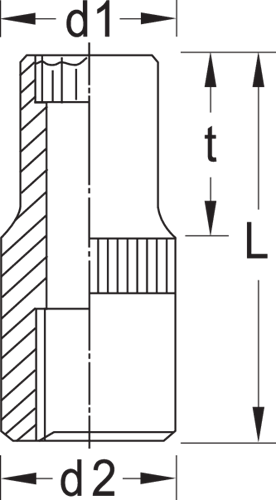

Dimensions and weights
- Total width [mm]: 17 mm
- Total height [mm]: 17 mm
- Total length [mm]: 25 mm
- Weight [kg]: 0,02 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 6,3 mm
- Drive connector square [inch]: 1/4"
- Working length: 25,0 mm
- Insert-Ø 1: 17,0 mm
- Insert-Ø 2: 15,0 mm
- Operating depth: 10,0 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3124 ISO 2725-1 DIN 3120 – C 6,3 ISO 1174
- Surface: chrome‑plated
- Width across flats 1 [mm]: 12
- Safety: Kugelfangrille
