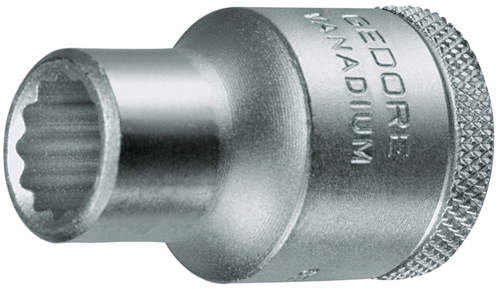

Socket 1/2" bi-hex 3/8 W
D 19 3/8W
/ Code no. 6139080
Socket 1/2" bi-hex 3/8 W
D 19 3/8W
/ Code no. 6139080
Price on request
Product line
EAN
4010886613900
Product description
- Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- Chrome Vanadium steel, ground, chrome-plated
-
Dimensions and weights
- Total width [mm]: 25,5 mm
- Total length [mm]: 39,5 mm
- Weight [kg]: 0,066 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Working length: 39,5 mm
- Insert-Ø 1: 25,5 mm
- Insert-Ø 2: 23,0 mm
- Operating depth: 17,0 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 12,5 ISO 1174
- Surface: ground chrome‑plated
- Width across flats 1 [WW]: 3/8W
- Safety: Kugelfangrille
