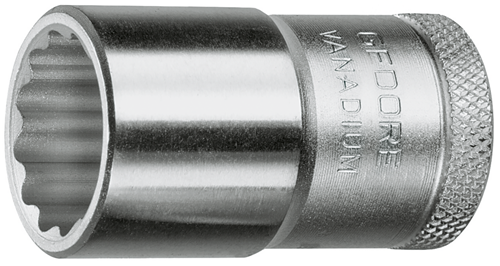

Socket 1/2" UD-Profile 25/32"
D 19 25/32AF
/ Code no. 6137380
Socket 1/2" UD-Profile 25/32"
D 19 25/32AF
/ Code no. 6137380
Price on request
Product line
EAN
4010886613733
Product description
- Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, polished, chrome-plated
-
Dimensions and weights
- Total width [mm]: 27,7 mm
- Total length [mm]: 40 mm
- Weight [kg]: 0,09 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-

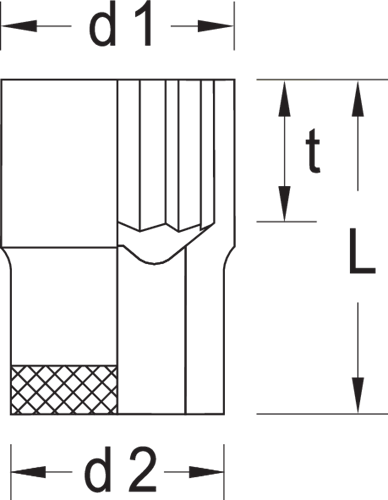

Technical characteristics
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Working length: 40,0 mm
- Insert-Ø 1: 27,7 mm
- Insert-Ø 2: 25,3 mm
- Operating depth: 17,0 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3120 – C 12,5 ISO 1174
- Surface: ground chrome‑plated
- Width across flats 1 [AF]: 25/32"
- Safety: Kugelfangrille
