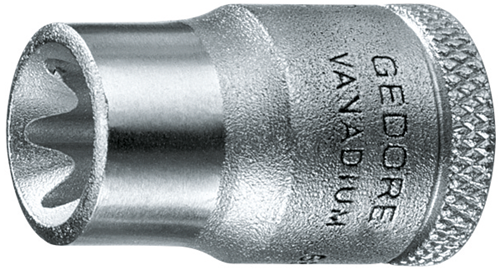

Socket 3/8" TX E8
TX 30 E8
/ Code no. 6250510
Socket 3/8" TX E8
TX 30 E8
/ Code no. 6250510
Price on request
Product line
EAN
4010886625057
Product description
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, polished, chrome-plated
-

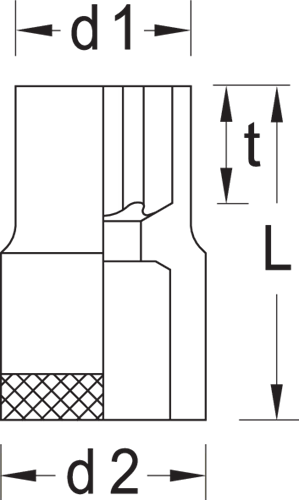

Dimensions and weights
- Total width [mm]: 17,5 mm
- Total length [mm]: 28 mm
- Weight [kg]: 0,027 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 10,0 mm
- Drive connector square [inch]: 3/8"
- Working length: 28,0 mm
- Insert-Ø 1: 10,8 mm
- Insert-Ø 2: 17,5 mm
- Operating depth: 6,0 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3120 – C 10 ISO 1174
- Surface: ground chrome‑plated
- Width across flats TX [mm]: E 8
- Screw size: M6 - M7
- Screw size [mm]: 7,52 mm
- Safety: Kugelfangrille
