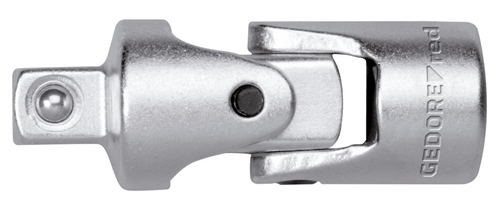

Universal joint 1/4"
R45300005
/ Code no. 3300144
Universal joint 1/4"
R45300005
/ Code no. 3300144
Price on request
Product line
EAN
4060833001441
Product description
- Screwed-on joint
- Acc. to DIN 3123 - C 6.3
- Matt chrome-plated
- For hand-operated socket spanners
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock
- Chromium vanadium steel
-
Dimensions and weights
- Total width [mm]: 14 mm
- Total height [mm]: 14 mm
- Total length [mm]: 34 mm
- Weight [kg]: 0,024 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 6,3 mm
- Drive connector square [inch]: 1/4"
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 6,3 ISO 1174 DIN 3123 - C 6,3
- Surface: matte chrome‑plated
