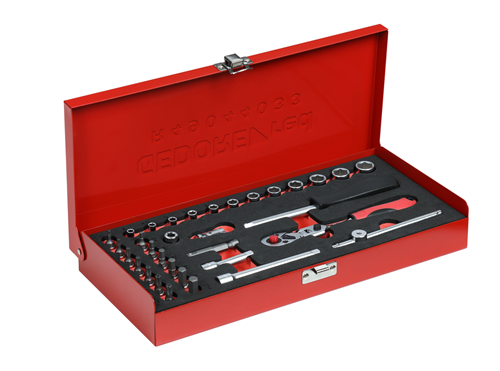

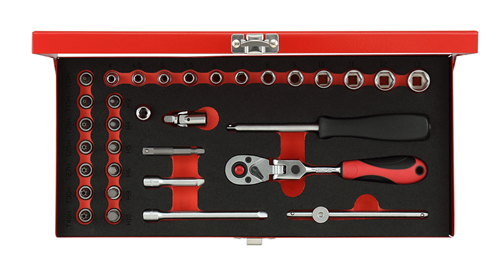

Socket wrench set 1/4" 33 pieces 4-13 mm
R49044033
/ Code no. 3300004
Socket wrench set 1/4" 33 pieces 4-13 mm
R49044033
/ Code no. 3300004
Price on request
Product line
EAN
4060833000048
Product description
- Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- 2C reversible ratchet, lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-meterial handle, hands-friendliy transfer of force, for sockets
- Square plug-in handle 1/4", 1-component handle with female square
- Socket 1/4", hex, metric, short, as per DIN 3124, ISO 2725
- Screwdriver bit socket 1/4", for hex screws, with pressed-in, phosphated pin
- Screwdriver bit socket 1/4" TX with drill hole, with pressed-in, phosphated pin
- Socket extension 1/4"
- Sliding T-bar with slider 1/4", as per DIN 3122, ISO 3315
- Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3
- Adaptor 1/4" for driving sockets and screwdriver bit sockets
- Bit adaptor 1/4", with in-hex and female square, for all bits and tools with 1/4" external hex
- Chrome-vanadium steel, matt satin chrome-plated
- For hand-operated screw work
- Red sheet-steel case with foam insert
-
Dimensions and weights
- Total width [mm]: 147 mm
- Total height [mm]: 46 mm
- Total length [mm]: 318 mm
- Weight [kg]: 1,77 kg
-
Scope of delivery
- Parts list (Text): 1/4" 2C jointed reversible ratchet fine toothed, 72 teeth | 150 mm 1/4" square plug-in handle 165 mm 1/4" socket wrench insert hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 | 25 mm 1/4" screwdriver bit socket hexagon 3 4 5 6 8 10 | 37 mm 1/4" screwdriver bit socket TX with bore hole T10 T15 T20 T25 T27 T30 T40 | 37 mm 1/4" socket wrench extension 50 100 mm 1/4" cross handle with sliding piece | 115 mm 1/4" universal joint | 32 mm Drive adaptor 1/4" hexagonal x 1/4" square | 50 mm Bit adaptor 1/4" square x 1/4" hexagon | 25 mm
- Contents (Qty of pieces): 33
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
