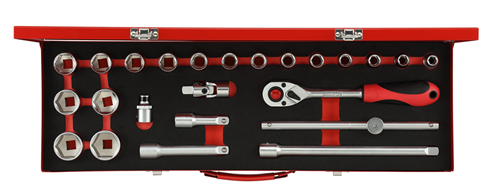

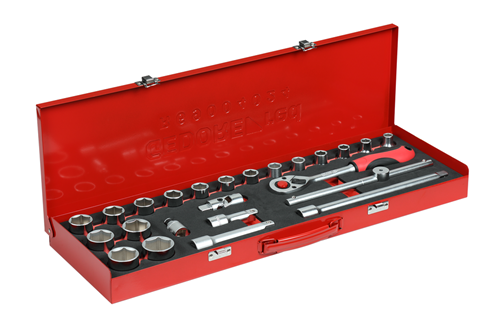

Socket wrench set 1/2" 10-32 mm 24 pieces
R69004024
/ Code no. 3300006
Socket wrench set 1/2" 10-32 mm 24 pieces
R69004024
/ Code no. 3300006
Price on request
Product line
EAN
4060833000062
Product description
- Coupler based on DIN 3120 - A 12,5, ISO 1174, with ball lock
- Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove
- 2C reversible ratchet 1/2", lever for reversing clockwise/anticlockwise direction, push-button release, fine-toothed, oval head, dual-material handle for ease in handling, for sockets
- Socket 1/2", hex, metric, short, as per DIN 3124, ISO 2725
- Socket extension 1/2"
- Sliding T-bar with slider 1/2”, as per DIN 3122, ISO 3315
- Universal joint 1/2”, screwed-on joint , acc. to DIN 3123 - C 12,5
- Bit adaptor 1/2", with in-hex and female square, for all bits and tools with 5/16" external hex
- Chrome-vanadium steel, matt satin chrome-plated
- For hand-operated screw work
- Red sheet-steel case with foam insert
-
Dimensions and weights
- Total width [mm]: 575 mm
- Total height [mm]: 51 mm
- Total length [mm]: 187 mm
- Weight [kg]: 5,5 kg
-
Scope of delivery
- Parts list (Text): 1/2" 2C lever reversible ratchet fine-toothed, 72 teeth | 250 mm 1/2" socket wrench insert hexagon 10 11 12 13 14 15 16 17 18 19 20 21 22 24 27 30 32 1/2" socket wrench extension 75 125 250 mm 1/2" universal joint | 66 mm 1/2" cross handle with sliding piece 250 mm Bit adaptor 1/2" square x 5/16" hexagon | 38 mm
- Contents (Qty of pieces): 24
-
Technical characteristics
- Drive connector square [metric]: 12,5 mm
- Drive square inch: 1/2"
