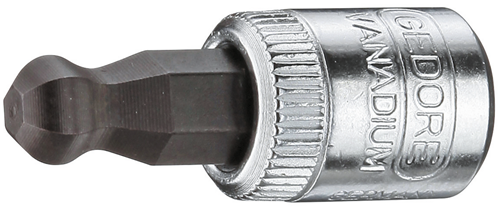

Screwdriver bit 1/4" ball head internal hexagon 5 mm
IN 20 K 5
/ Code no. 2219417
Screwdriver bit 1/4" ball head internal hexagon 5 mm
IN 20 K 5
/ Code no. 2219417
Price on request
Product line
EAN
4010886883358
Product description
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Hand operated, knurled for good grip
- Chromed
- With pressed-in pin, phosphated
- Total swivel angle approx. 15-20°
- Chromium vanadium steel
-

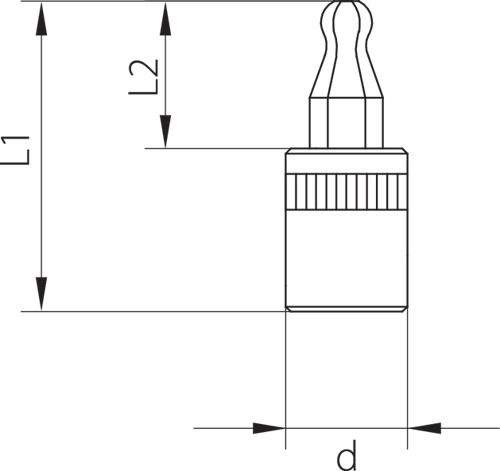

Dimensions and weights
- Total length [mm]: 37 mm
- Weight [kg]: 0,01 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 6,3 mm
- Drive connector square [inch]: 1/4"
- Working length: 37,0 mm
- Insert-Ø 1: 12,0 mm
- Insert Ø Actuator: 12 mm
- Total swivel angle: 15-20°
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 6,3 ISO 1174
- Surface: chrome‑plated
- Width across flats 1 [mm]: 5
- Safety: Kugelfangrille
- Tip length: 14,5 mm
