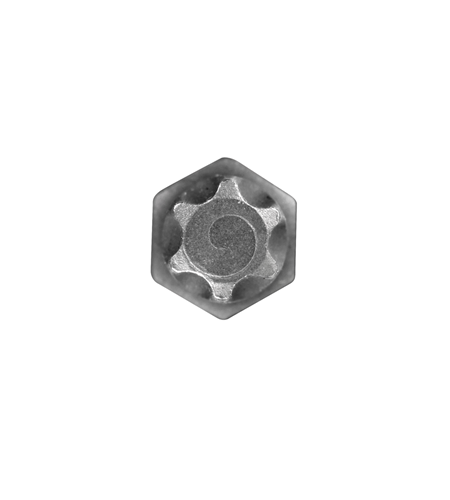

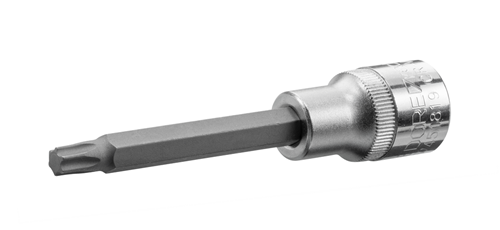

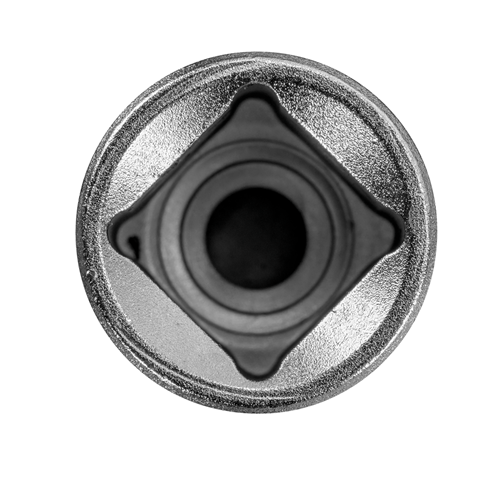

Screwdriver bit socket 1/2" TX T40
R62451819
/ Code no. 3300454
Screwdriver bit socket 1/2" TX T40
R62451819
/ Code no. 3300454
Price on request
Product line
EAN
4060833004541
Product description
- With pressed-in, phosphated pin
- Hand-operated, knurled grip
- Drive end brightly polished
- Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove
- Chromium vanadium steel
-
Dimensions and weights
- Total width [mm]: 22 mm
- Total length [mm]: 100 mm
- Weight [kg]: 0,09 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive size TX (external): TX 40
- Abtriebsprofil: TX
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Working length: 100,0 mm
- Insert-Ø 1: 22,0 mm
- Insert Ø Actuator: 22 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 12,5 ISO 1174
- Surface: high‑gloss polished (drive side)
- Safety: Kugelfangrille
- Tip length: 62,0 mm
