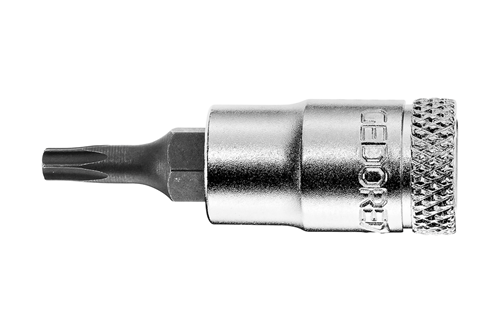

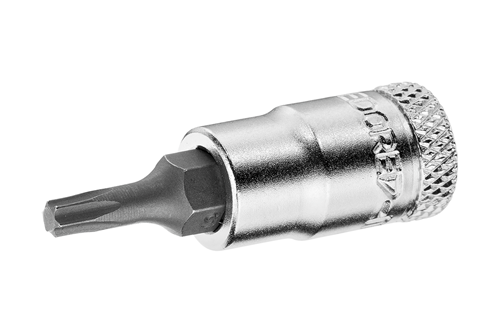

Screwdriver bit socket 1/4" TX T25
ITX 20 T25
/ Code no. 6191080
Screwdriver bit socket 1/4" TX T25
ITX 20 T25
/ Code no. 6191080
Price on request
Product line
EAN
4010886619100
Product description
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Hand operated, knurled for good grip
- Chromed
- With pressed-in pin, phosphated
-

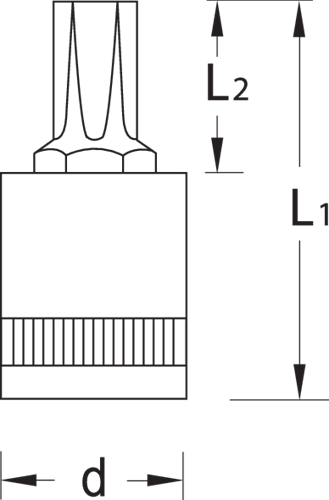

Dimensions and weights
- Total width [mm]: 12 mm
- Total height [mm]: 12 mm
- Total length [mm]: 38 mm
- Weight [kg]: 0,02 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive size TX (external): TX 25
- Abtriebsprofil: TX
- Drive mount, square [metric]: 6,3 mm
- Drive connector square [inch]: 1/4"
- Working length: 37,0 mm
- Insert Ø Actuator: 12 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 6,3 ISO 1174
- Surface: chrome‑plated
- Screw size: M4,5 - M5
- Safety: Kugelfangrille
- Tip length: 15,0 mm
