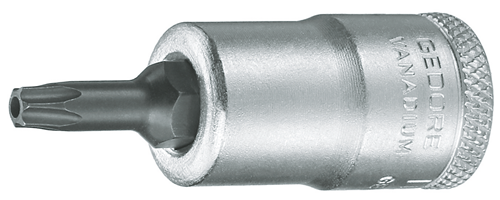

Screwdriver bit socket 3/8" TX T45
ITX 30 B T45
/ Code no. 1441000
Screwdriver bit socket 3/8" TX T45
ITX 30 B T45
/ Code no. 1441000
Price on request
Product line
EAN
4010886815397
Product description
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in GEDORE vanadium special steel, gun-metal finish
-

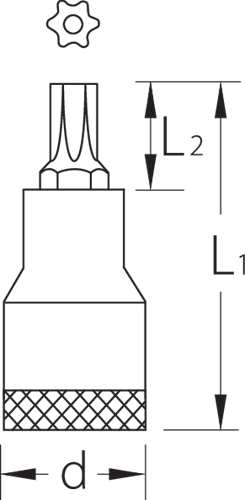

Dimensions and weights
- Total width [mm]: 17,5 mm
- Total length [mm]: 49 mm
- Weight [kg]: 0,066 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics

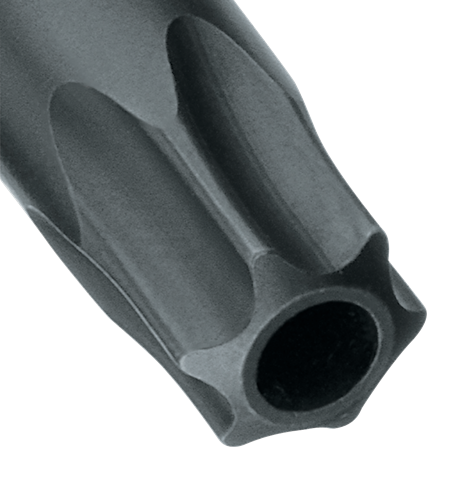

- Drive size TX (external): TX 45
- Abtriebsprofil: TX
- Drive mount, square [metric]: 10,0 mm
- Drive connector square [inch]: 3/8"
- Bore mm: 3,45 x 3,68
- Working length: 49,0 mm
- Insert-Ø 1: 19,0 mm
- Insert Ø Actuator: 17,5 mm
- Material: Vanadium steel
- Standard: DIN 3120 – C 10 ISO 1174
- Surface: chrome‑plated
- Screw size: M8 - M10
- Safety: Kugelfangrille
- Tip length: 17,0 mm
