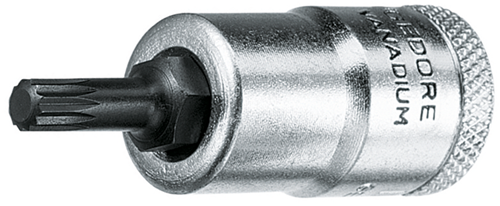

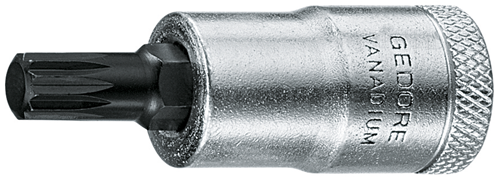

Screwdriver bit socket 3/8" XZN multi-point M10
INX 30 10
/ Code no. 2194872
Screwdriver bit socket 3/8" XZN multi-point M10
INX 30 10
/ Code no. 2194872
Price on request
Product line
EAN
4010886883136
Product description
- Acc. to DIN 2324
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in GEDORE vanadium special steel, manganese-phosphated
- Tip as per DIN 2325
-

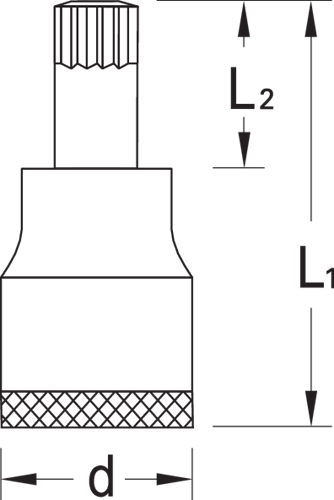

Dimensions and weights
- Total width [mm]: 19 mm
- Total length [mm]: 49 mm
- Weight [kg]: 0,078 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive size internal multi‑spline XZN: XZN M10
- Abtriebsprofil: Internal multi‑spline XZN
- Drive mount, square [metric]: 10,0 mm
- Drive connector square [inch]: 3/8"
- Working length: 49,0 mm
- Insert Ø Actuator: 19 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 10 ISO 1174 DIN 2324
- Surface: matte chrome‑plated
- Safety: Kugelfangrille
- Tip length: 17,0 mm
