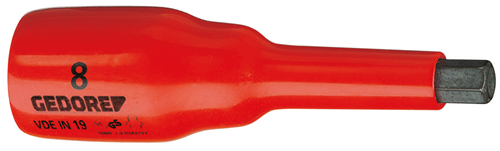

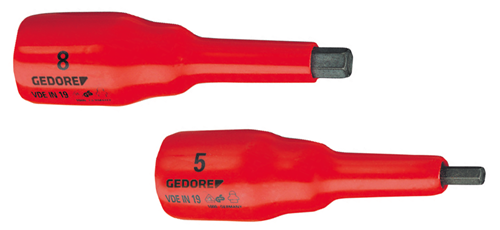

VDE screwdriver bit 1/2" internal hexagon 8 mm
VDE IN 19 8
/ Code no. 6124640
VDE screwdriver bit 1/2" internal hexagon 8 mm
VDE IN 19 8
/ Code no. 6124640
Price on request
Product line
EAN
4010886612460
Product description
- With pressed-in pin
- With square drive as per DIN 3120 - C 12.5, ISO 1174, with ball retaining groove
- Tip made of GEDORE vanadium special steel
- VDE insulation up to 1000 V, acc. to EN 60900/IEC 60900, two-ply Check-Tool insulation
- These inserts can only be combined with No. VDE 1991, VDE 1993 U, VDE 1990, VDE 4508-05
-
Dimensions and weights
- Total width [mm]: 27 mm
- Total length [mm]: 106 mm
- Weight [kg]: 0,105 kg
- Weight: 0,240 lbs
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 12,5 mm
- Drive connector square [inch]: 1/2"
- Execution: VDE insulated up to 1000 V
- Working length: 106,0 mm
- Insert Ø Actuator: 27 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3120 – C 12,5 ISO 1174 EN 60900/IEC60900
- Surface: double check‑tool insulation
- Width across flats 1 [mm]: 8
- Safety: Kugelfangrille
