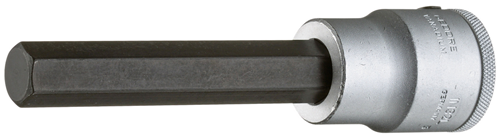

Screwdriver bit 3/4" long inside hexagon 19mm
IN 32 L 19-155
/ Code no. 2003511
Screwdriver bit 3/4" long inside hexagon 19mm
IN 32 L 19-155
/ Code no. 2003511
Price on request
Product line
EAN
4010886876435
Product description
- Acc. to DIN 7422
- Square drive as per DIN 3120 - D 20, ISO 1174, with locking pin
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in GEDORE vanadium special steel, manganese-phosphated
-

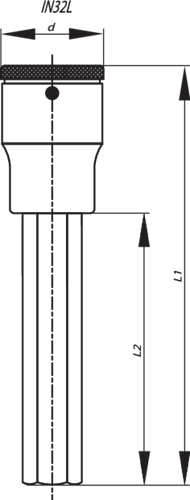

Dimensions and weights
- Total width [mm]: 38 mm
- Total length [mm]: 155 mm
- Weight [kg]: 0,61 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive mount, square [metric]: 20,0 mm
- Drive connector square [inch]: 3/4"
- Insert Ø Actuator: 38 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 7422 DIN 3120 – D 20 ISO 1174
- Surface: chrome‑plated
- Width across flats 1 [mm]: 19
- Safety: Stiftsicherung
- Tip length: 100,0 mm
