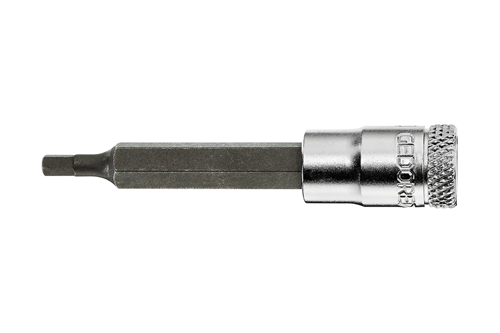

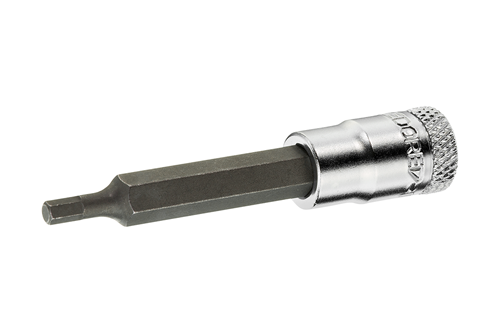

Screwdriver bit 1/4" long inside hexagon 4 mm
IN 20 L 4-60
/ Code no. 1933264
Screwdriver bit 1/4" long inside hexagon 4 mm
IN 20 L 4-60
/ Code no. 1933264
Price on request
Product line
EAN
4010886864968
Product description
- Acc. to DIN 7422
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Hand operated, knurled for good grip
- Chromed
- Press-fitted pin, phosphated
-
Dimensions and weights
- Total width [mm]: 12 mm
- Total height [mm]: 12 mm
- Total length [mm]: 60 mm
- Weight [kg]: 0,025 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Separate tip: 6.0
- Drive mount, square [metric]: 6,3 mm
- Drive connector square [inch]: 1/4"
- Diameter 1 [mm]: 12,0
- Working length: 60,0 mm
- Insert-Ø 1: 12,0 mm
- Insert Ø Actuator: 12 mm
- Material: Chrome‑vanadium steel
- Standard: DIN 3120 – C 6,3 ISO 1174 DIN 7422
- Surface: chrome‑plated
- Width across flats 1 [mm]: 4
- Safety: Kugelfangrille
- Tip length: 32,0 mm
