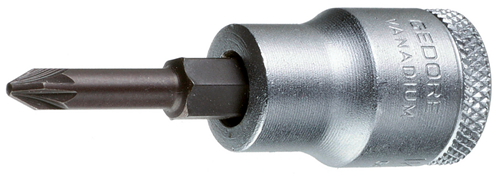

Screwdriver bit socket 3/8" PZ 1
IKS 30 PZD 1
/ Code no. 1640968
Screwdriver bit socket 3/8" PZ 1
IKS 30 PZD 1
/ Code no. 1640968
Price on request
Product line
EAN
4010886831328
Product description
- Square drive as per DIN 3120 - C 10, ISO 1174, with ball retention groove
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in vanadium special steel, gun-metal finish
- Tip as per DIN ISO 8764-1 PZ
-

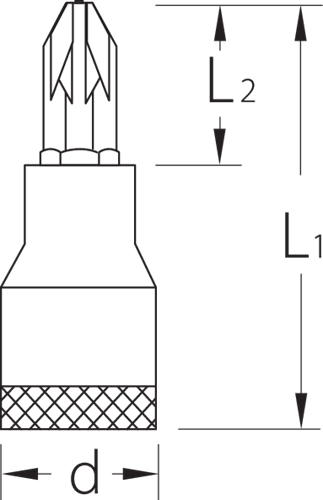

Dimensions and weights
- Total length [mm]: 55 mm
- Weight [kg]: 0,04 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive size cross recess (PZ): PZ 1
- Abtriebsprofil: Pozidriv
- Drive mount, square [metric]: 10,0 mm
- Drive connector square [inch]: 3/8"
- Output tip reference standard: DIN ISO 8764-1 PZ
- Insert Ø Actuator: 17,5 mm
- Material: Vanadium steel
- Standard: DIN 3120 – C 10 ISO 1174
- Surface: chrome‑plated
- Safety: Kugelfangrille
- Tip length: 27,0 mm
- Remuneration of the output tip: brüniert
