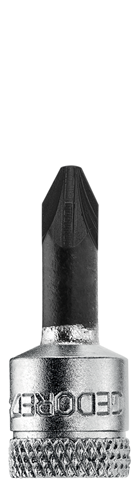

Screwdriver bit 1/4" POZI PZ 1
IKS 20 PZD 1
/ Code no. 6187130
Screwdriver bit 1/4" POZI PZ 1
IKS 20 PZD 1
/ Code no. 6187130
Price on request
Product line
EAN
4010886618714
Product description
- Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Hand operated, knurled for good grip
- Chromed
- Tip as per DIN ISO 8764-1 PH
- Tip as per DIN ISO 8764-1 PZ
-

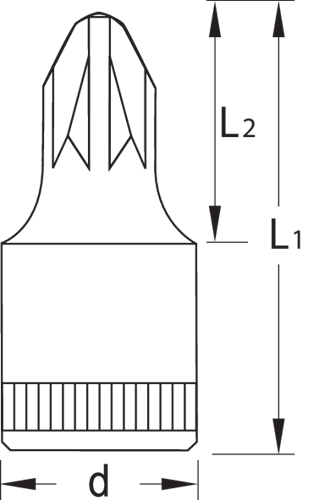

Dimensions and weights
- Total length [mm]: 28 mm
- Weight [kg]: 0,01 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive size cross recess (PZ): PZ 1
- Abtriebsprofil: Pozidriv
- Drive mount, square [metric]: 6,3 mm
- Drive connector square [inch]: 1/4"
- Output tip reference standard: DIN ISO 8764-1 PZ
- Insert Ø Actuator: 12 mm
- Material: Chrome‑vanadium steel
- Standard: ISO 1174 DIN 3120 – C 6,3
- Surface: chrome‑plated
- Safety: Kugelfangrille
- Tip length: 16,0 mm
- Remuneration of the output tip: phosphatiert
