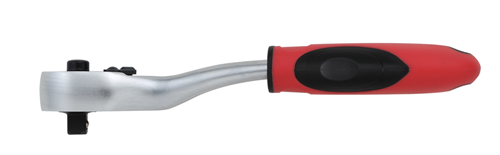

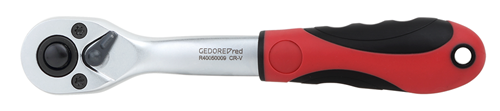

2K reversible ratchet 1/4" cranked length 145 mm
R40050009
/ Code no. 3300159
2K reversible ratchet 1/4" cranked length 145 mm
R40050009
/ Code no. 3300159
Price on request
Product line
EAN
4060833001595
Product description
- Offset pattern for in-depth screw work
- Lever for reversible clockwise/anticlockwise operation
- Push-button release
- Sturdy mechanisms
- Oval head
- 2-component-handle for a hands-friendly transfer of force
- Matt chrome-plated surface
- For sockets, accessories etc. with square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove
- Chromium vanadium steel
-
Dimensions and weights
- Total width [mm]: 25 mm
- Total height [mm]: 24 mm
- Total length [mm]: 146 mm
- Weight [kg]: 0,12 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Number of teeth: 36
- Execution: with hanging hole
- Push-button release: Yes
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: red/black
- Handle material: plastic
- Material: Chrome‑vanadium steel
- Surface: matte chrome‑plated
- Return angle: 10 °
- Switching type: Umschalthebel
