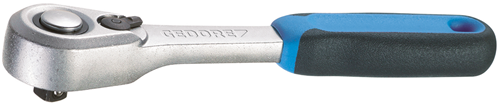

Reversible ratchet 1/4" 2C handle 127 mm
2093 U-20
/ Code no. 1703749
Reversible ratchet 1/4" 2C handle 127 mm
2093 U-20
/ Code no. 1703749
Price on request
Product line
EAN
4010886855638
Product description
- Used throughout industry and the automotive world - and as well in confined spaces
- Acc. to DIN 3122, ISO 3315
- Small, drop shaped head for confined spaces
- Fine-toothed (40 teeth), with lever change and push-button release
- Return angle 9°
- Non-slip 2-component handle with suspension hole
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 6.3, ISO 1174, ball locking device
- GEDORE vanadium steel 31CrV3, chromed
-
Dimensions and weights
- Total width [mm]: 24 mm
- Total height [mm]: 21 mm
- Total length [mm]: 130 mm
- Weight [kg]: 0,095 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 6,3 mm
- Drive square inch: 1/4"
- Number of teeth: 40
- Locking tool type: Kugelarretierung
- Execution: with hanging hole
- Push-button release: Yes
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: blue/black
- Handle material: plastic
- Ratchet head height: 20 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3122 ISO 3315
- Surface: chrome‑plated
- Return angle: 9 °
- Switching type: Umschalthebel
