Reversible ratchet 1/2" offset handle
1993 U-20 G
/ Code no. 2746786
Reversible ratchet 1/2" offset handle
1993 U-20 G
/ Code no. 2746786
Price on request
Product line
EAN
4010886937709
Product description
- Used throughout industry and the automotive world - and as well in confined spaces
- Acc. to DIN 3122, ISO 3315

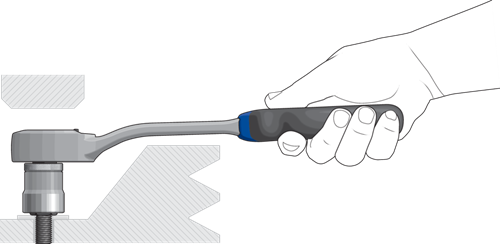

- Handle offset for barely accessible places
- Reduces the risk of injury to the fingers when working on flat surfaces
- Small, drop shaped head for confined areas
- Fine-toothed (60 teeth), with lever change and push-button release
- Return angle 6°
- Non-slip 2-component handle with suspension hole
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5, ISO 1174, ball locking device
- Vanadium steel 31CrV3, chrome-plated
-
Dimensions and weights
- Total width [mm]: 42 mm
- Total height [mm]: 40 mm
- Total length [mm]: 270 mm
- Weight [kg]: 0,55 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 12,5 mm
- Drive square inch: 1/2"
- Number of teeth: 60
- Locking tool type: Kugelarretierung
- Execution: with hanging hole
- Push-button release: Yes
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: blue/black
- Handle material: plastic
- Ratchet head height: 37,5 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3122 ISO 3315
- Surface: chrome‑plated
- Return angle: 6 °
- Switching type: Umschalthebel
