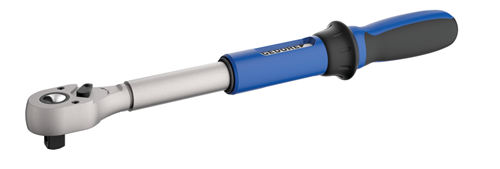

Telescopic reversible ratchet 1/2"
1993 TU-10
/ Code no. 3041859
Telescopic reversible ratchet 1/2"
1993 TU-10
/ Code no. 3041859
Price on request
Product line
EAN
4010886950371
Product description
- Long lever arm for high torques, max. torque 600 Nm
- Adjustable from 400 to 600 mm in eight steps
- With lowered switch lever
- With push button release
- Return angle 7.5°
- Non-slip 2-component handle
- Locks in the middle position: When the lever is flipped, it automatically engages for clockwise or anti-clockwise operation
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5, ISO 1174, ball locking device
- GEDORE vanadium steel 31CrV3, chromed
- Hot-drop forged
-
Dimensions and weights
- Total width [mm]: 48 mm
- Total height [mm]: 48 mm
- Total length [mm]: 405 mm
- Weight [kg]: 1,31 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Drive connector square [metric]: 12,5 mm
- Drive square inch: 1/2"
- Number of teeth: 48
- Locking tool type: Kugelarretierung
- Torque (max.) [Nm]: 600 Nm
- Push-button release: Yes
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: blue/black
- Handle material: plastic
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3120 – C 12,5 ISO 1174
- Surface: chrome‑plated
- Return angle: 7,5 °
- Safety: Kugelsicherung
- Switching type: Umschalthebel
- variable length: 400-600
