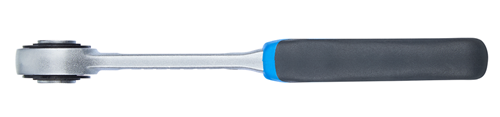

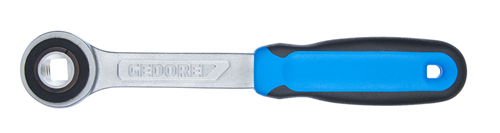

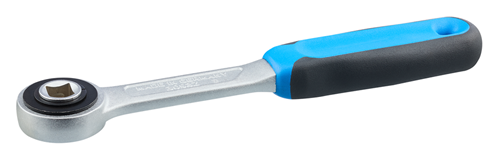

Gear ratchet 3/8" without square
3093 Z
/ Code no. 6237410
Gear ratchet 3/8" without square
3093 Z
/ Code no. 6237410
Price on request
Product line
EAN
4010886623749
Product description
- Used throughout industry and the automotive world
- Acc. to DIN 3122, ISO 3315
- Medium fine toothing and very robust
- Return angle 10°
- Non-slip 2-component handle with suspension hole
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 10, ISO 1174, ball locking device
- Vanadium steel 31CrV3, chrome-plated
-
Dimensions and weights
- Total length [mm]: 200 mm
- Weight [kg]: 0,204 kg
-
Scope of delivery
- Contents (Qty of pieces): 1
-
Technical characteristics
- Number of teeth: 36
- Execution: with hanging hole
- Handle available: Yes
- Handle design: 2-Komponenten
- Handle colour: blue/black
- Handle material: plastic
- Ratchet head height: 18 mm
- Head height 1 [mm]: 18 mm
- Material: Chrome‑vanadium steel 31CrV3
- Standard: DIN 3122 ISO 3315
- Return angle: 10 °
- Switching type: Durchsteck-Vierkant
