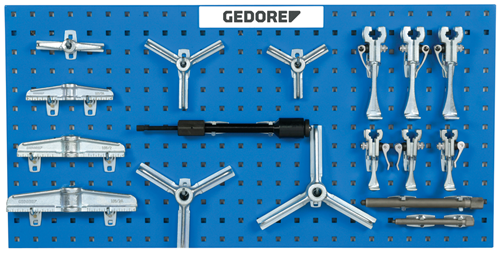

Industrial pulling set, Add-on system
2.30
/ Code no. 1393014
Industrial pulling set, Add-on system
2.30
/ Code no. 1393014
Price on request
Product line
EAN
4036976109788
Product description
- For the assembly of the tried and tested 1.06 and 1.07 versions
- Using this set, you will be able to assemble 12 of the usual versions with high-speed clamping legs, including hydraulic spindle, in seconds
- Everything at hand on perforated wall-board
-
Dimensions and weights
- Weight [kg]: 19,4 kg
-
Scope of delivery
- Parts list (Text): 1 cross-beam, 2-arm pattern 140 mm, No. 106/103 1 cross-beam, 2-arm pattern 180 mm, No. 106/1A03 1 cross-beam, 2-arm pattern 220 mm, No. 106/203 1 cross-beam, 2-arm pattern 260 mm, No. 106/2A03 1 cross-beam, 3-arm pattern 140 mm, No. 107/103 1 cross-beam, 3-arm pattern 180 mm, No. 107/1A03 1 cross-beam, 3-arm pattern 220 mm, No. 107/203 1 cross-beam, 3-arm pattern 260 mm, No. 107/2A03 1 spindle 17 mm, M14x1.5, 140 mm, No. 1.1406140 1 spindle 22 mm, G 1/2", 210 mm, No. 1.2106210 1 hydraulic pressure spindle 10 t, No. 1.06/HSP1 3 quick-release pulling legs 100 mm, No. 106/A-100-E 3 quick-release pulling legs 150 mm, No. 106/B-150-E
- Contents (Qty of pieces): 17
-
Technical characteristics
- Execution: incl. perforated panel
- Hydraulic spindle: 1.06/HSP1
- Hydraulic spindle available: Yes
