Separating puller set 2+3 arms
1101-1.40-1.12-13
/ Code no. 3437434
Separating puller set 2+3 arms
1101-1.40-1.12-13
/ Code no. 3437434
Price on request
Product line
EAN
4010886971338
Product description
- 2 and 3-arm separating and external pullers with self-pressing hooks
- For pulling tight taper roller bearings, ball bearings, inner races, battery terminals and other thin-walled parts up to a maximum diameter of 70 mm and a maximum installation depth of 125 mm
- Made in Germany
- Separating knife usable on both sides
- The puller can be expanded with additional accessories such as 1.81/10 adapters
- Can be used flexibly thanks to 2 and 3 arm components
- With check tool insert for quick identification of missing tools
- Insert can be used in drawers with the minimum dimensions 340 x 260 x 65 mm
- As tools are fully sunk in the foam, the equipped insert can be stacked
- In GEDORE i-BOXX® 72 No. 1101 L
- Dimensions: W 367 x D 316 x H 72 mm
-
Dimensions and weights
- Total width [mm]: 316 mm
- Total height [mm]: 72 mm
- Total length [mm]: 367 mm
- Weight [kg]: 5,25 kg
-
Scope of delivery

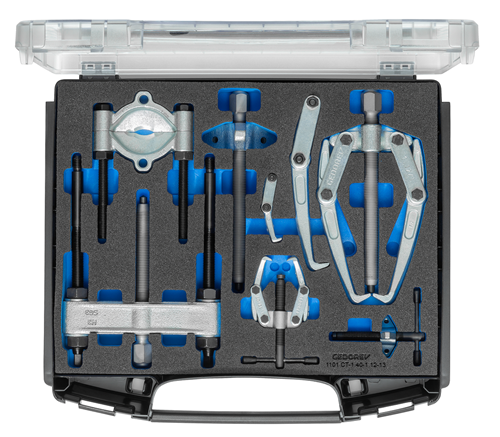

- Parts list (Text): 1x 114/104 2 arm truss/head 1x 115/104 3 arm truss/head 3x 112/1-120 puller hooks, complete 2x 1.1406155 spindle complete M14x1.5x155mm 1x 112/0104 2-arm traverse / head 1x 113/0104 3-arm traverse / head 3x 112/02-040 puller hook, complete 2x 1.100660 complete spindle M10x1.5x60mm 1x 1.40/0 separator 5-60 mm 1x 1.38/0 puller 40-120x125mm EI-1101-1.40-1.12-13 CT insert empty 342x262x60mm + 1101 L GEDORE i-BOXX 72, empty
- Contents (Qty of pieces): 16
