Internal extractor set in L-BOXX
1100-1.31/2
/ Code no. 3461777
Internal extractor set in L-BOXX
1100-1.31/2
/ Code no. 3461777
Price on request
Product line
EAN
4010886975336
Product description

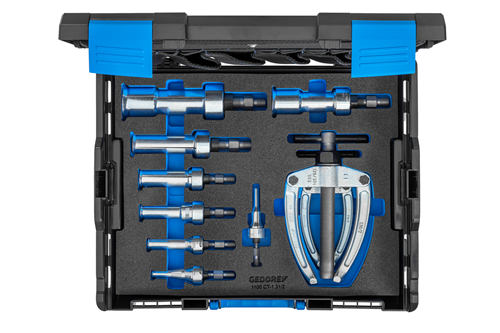

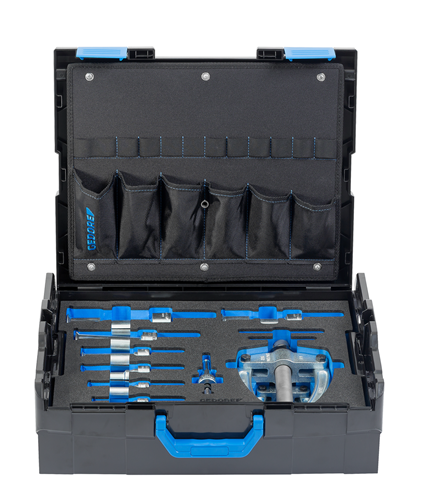

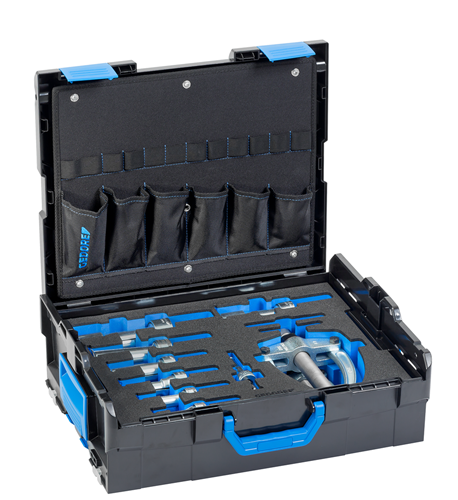

- Internal extractor set consisting of internal extractors & counter supports

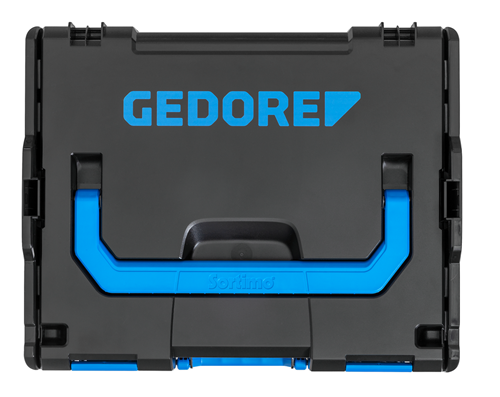

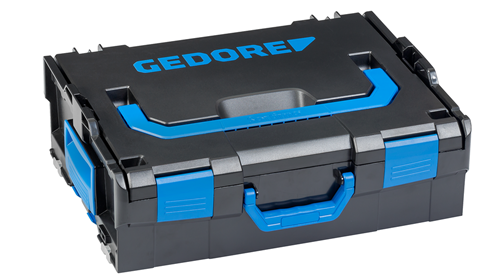

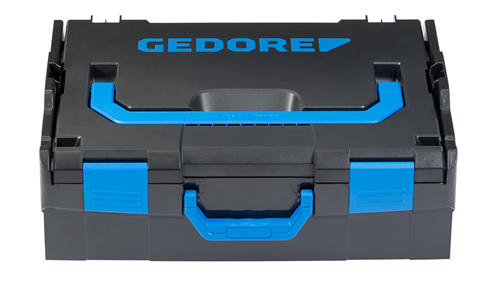

- Storage box made of impact and shock resistant ABS plastic
- In the L-BOXX® mobile, as well as stationary usable
- System compatible -> Mixx&Click and Sortimo in-vehicle equipment

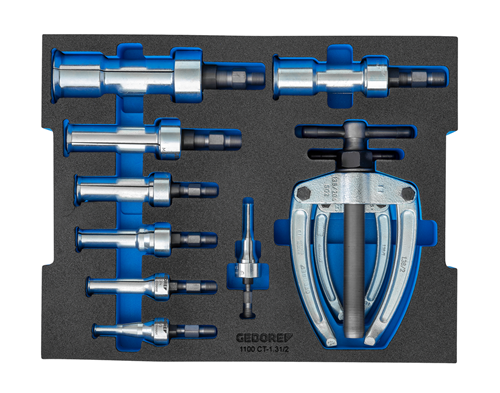

- With Check-Tool insert for quick check of tools
- Tools completely recessed in the foam, thus the equipped insert is stackable
- Insert can be used in drawers with minimum dimensions 400x310x90 mm
- Made in Germany
- All components available as spare parts
-
Dimensions and weights
- Total width [mm]: 360 mm
- Total height [mm]: 152 mm
- Total length [mm]: 444 mm
- Weight [kg]: 8,97 kg
-
Scope of delivery
- Parts list (Text): 1.30/2 Internal extractor for Ø 12-15 mm 1.30/3 Internal extractor for Ø 14-19 mm 1.30/4 Internal extractor for Ø 19-25 mm 1.30/4A Internal extractor for Ø 24-30 mm 1.30/5 Internal extractor for Ø 30-36 mm 1.30/6 Internal extractor for Ø 36-46 mm 1.30/7 Internal extractor for Ø 46-56 mm 1.30/8 Internal extractor for Ø 56-70 mm 1.36/1 Counter support for 1.30/0 - 1.30/5 1.36/2 Counter support for 1.30/6 - 1.30/7 EI-1100 CT-1.31/2 Check-Tool-Module, empty 1100 L GEDORE L-BOXX 136 with front handle
- Contents (Qty of pieces): 10
-
Technical characteristics
- Connecting thread: M10x1,5 M14x1,5
- Surface: zinc‑plated
- Clamping width a2 (max.) internal pulling [mm]: 70 mm
- Clamping width a2 (min.) internal pulling [mm]: 12 mm
