Internal extractor set 5 pieces
1.34/10
/ Code no. 1638629
Internal extractor set 5 pieces
1.34/10
/ Code no. 1638629
Price on request
Product line
EAN
4036976112443
Product description
- For close-fitting ball bearings, rings, bushings and Simmerrings®
- Titanium-nitrided surface
- Multiple wrench size (11 + 13 mm)
- M10 connecting thread
- Operation:

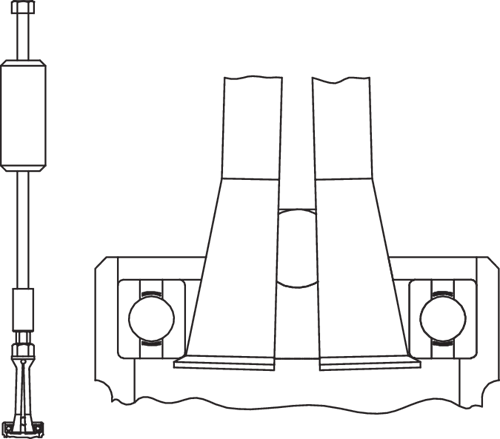

- The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace is then added. Both feet must be aligned parallel to the spindle to ensure rigidity

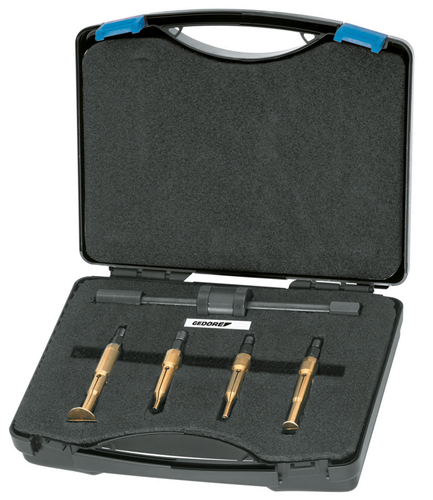

- In robust plastic case, 275 x 229 x 83 mm
-
Dimensions and weights
- Weight [kg]: 1,24 kg
-
Scope of delivery
- Parts list (Text): 1.34 / 1 internal extractors 5 - 8.5 mm 1.34 / 2 internal extractors 8 - 15 mm 1.34 / 3 internal extractors 15 - 25 mm 1.34 / 4 internal extractors 25 - 36 mm 1.35 / 0 slide hammer 230 mm, 200 g 134/099 plastic case with foam insert
- Contents (Qty of pieces): 5
-
Technical characteristics
- Connecting thread: M10
- Execution: with plastic case
- Surface: titanium‑nitride coated
- Width across flats [mm]: 11 + 13 mm
